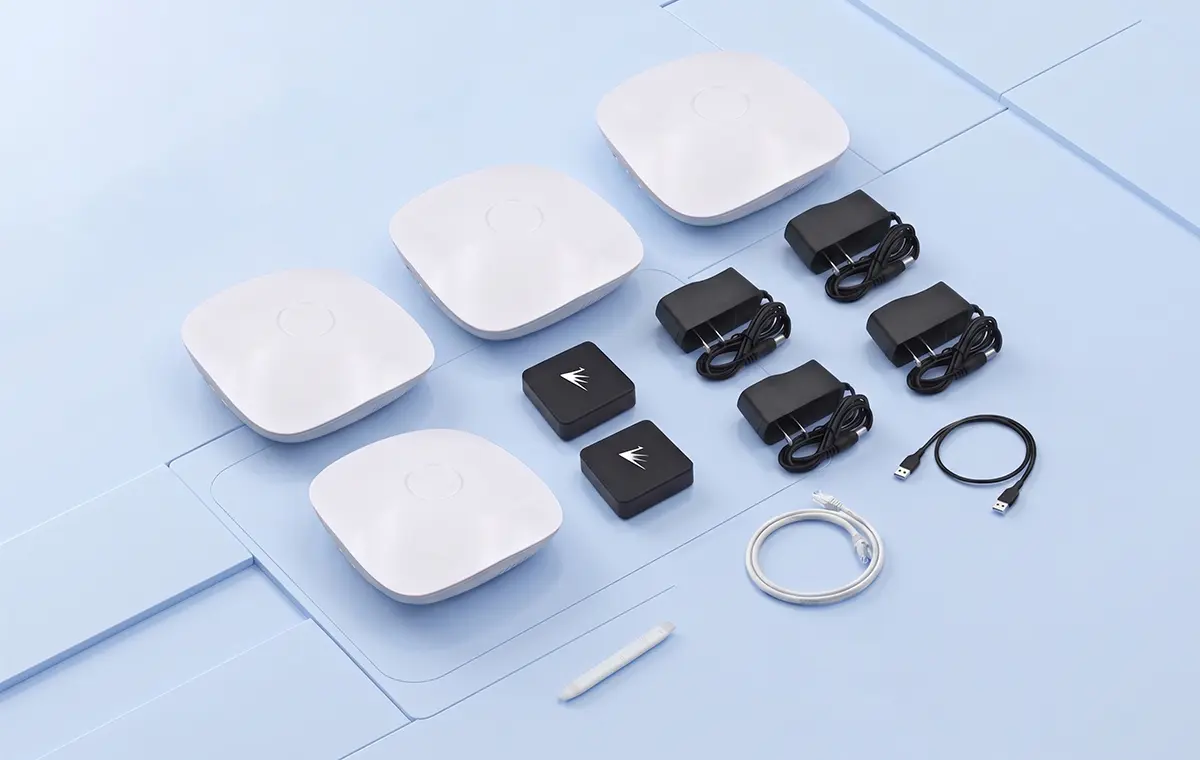

ชุดกำหนดตำแหน่งคลังสินค้า WMK-K2 UWB
Warehouse management suite K2 is a set of UWB protocol, which can quickly perform sub-meter accurate positioning requirements.
The IoT platform FeasyCloud in the kit supplemented by providing UWB base station Gateway and Tag. Those can help realize the functions of asset positioning, การป้องกันสินทรัพย์, alarm management, เป็นต้น, and accurately locate it to centimeters.
How it works

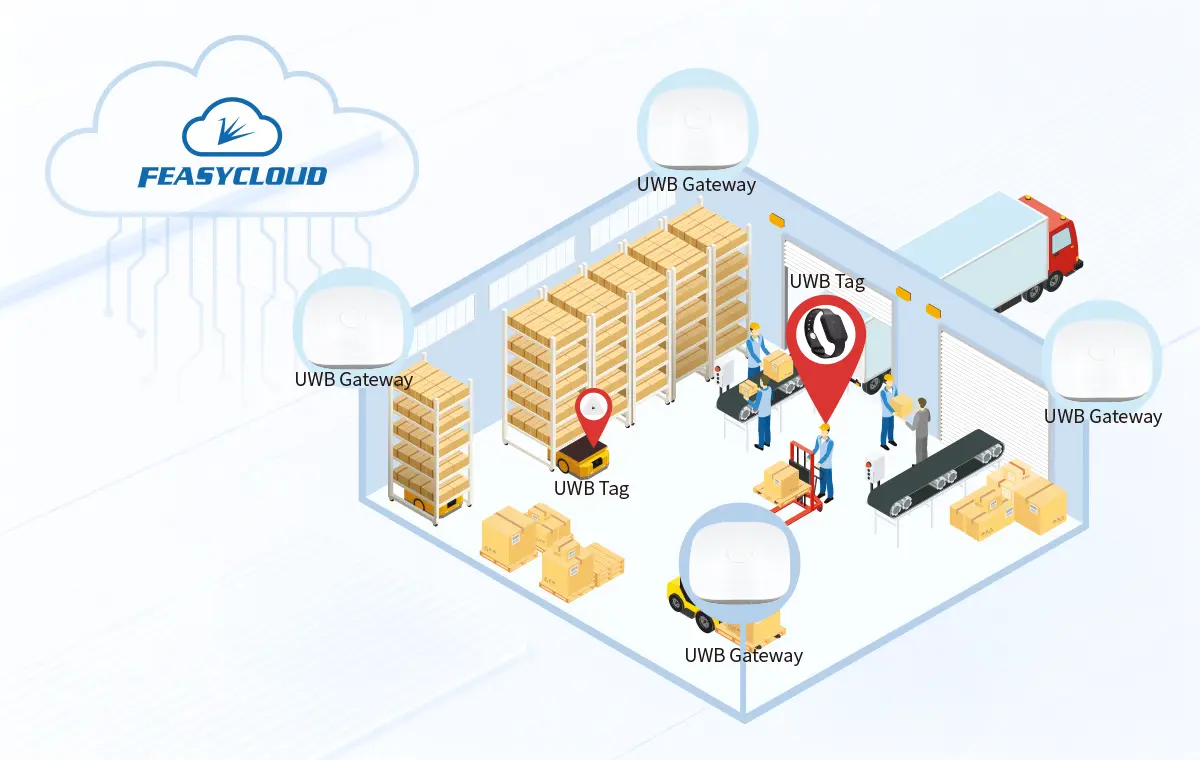

- UWB positioning tags establish communication links with multiple UWB gateways.
- UWB gateways collect data packets continuously transmitted by UWB positioning tags and perform data processing. After parsing and extracting tag signal data corresponding to each base station, the data is finally uploaded to the FeasyCloud service platform via the UWB gateway (master).
-
Device access
-
Message communication
-
Facility management
-
Data analysis
-
Monitoring operation and maintenance

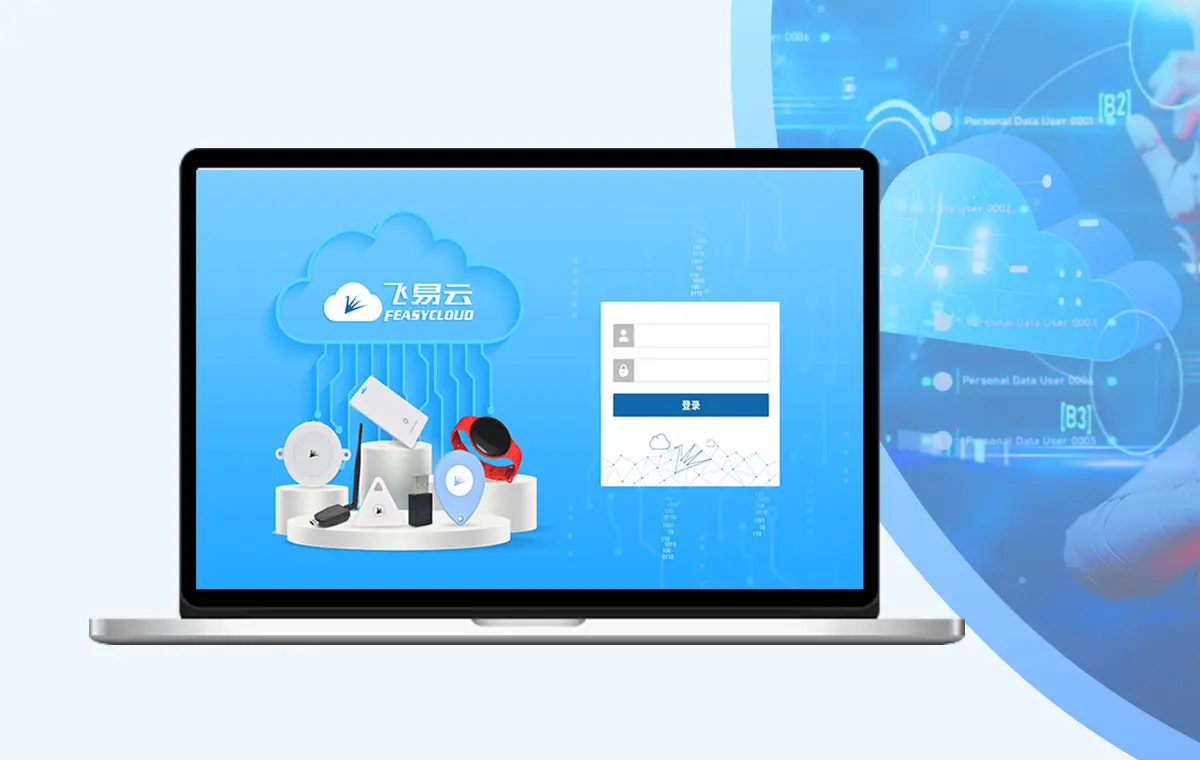

FeasyCloud Servics
FeasyCloud is a professional-grade one-stop IoT cloud service platform independently developed by Feasycom. Relying on its in-depth hardware and software integration capabilities, the platform provides complete visualized management services, with core application functions including device positioning, การส่งข้อมูล, asset management and control, and status monitoring.
UWB Positioning
ความกว้างเป็นพิเศษ (UWB) technology has revolutionized real-time locationing with its precise and reliable capabilities. It plays a crucial role in various industries such as logistics, การดูแลสุขภาพ, manufacturing, and transportation. UWB is ideal for indoor environments where GPS signals may be unreliable.
แอปพลิเคชัน
ข้อกำหนด
| UWB Gateway | |||||||
| แบบอย่าง | FSC-UP3312A & FSC-UP3312B | ||||||
| UWB Standard | IEEE 802.15.4 ＆ 802.15.4z | ||||||
| Wi-Fi | 2.4ก | ||||||
| แหล่งจ่ายไฟ | PoE or DC | ||||||
| Installation Method | Wall-mounted or ceiling-mounted | ||||||
| Receiving Range | ≥40m | ||||||
| ความแม่นยำ | ≤40cm | ||||||
| แท็ก UWB | |||||||
| แบบอย่าง | FSC-UP3311 | ||||||
| UWB Standard | IEEE 802.15.4 ＆ 802.15.4z | ||||||
| Wi-Fi | 2.4ก | ||||||
| แหล่งจ่ายไฟ | 2*AAA Batteries (replaceable) | ||||||
| Installation Method | Multiple Mounting Options | ||||||
| Receiving Range | ≥40m | ||||||
| ความแม่นยำ | ≤40cm | ||||||
| Optional Features | Inertial Measurement Unit (IMU), button, vibration, buzzer, NFC | ||||||
Services and Support
-
Professional Technical Support
-
In-depth Firmware Development
-
Rapid Prototyping
-
Tailored Solution Customization
-
Feature Expansion Adaptation
-
White Labeling
