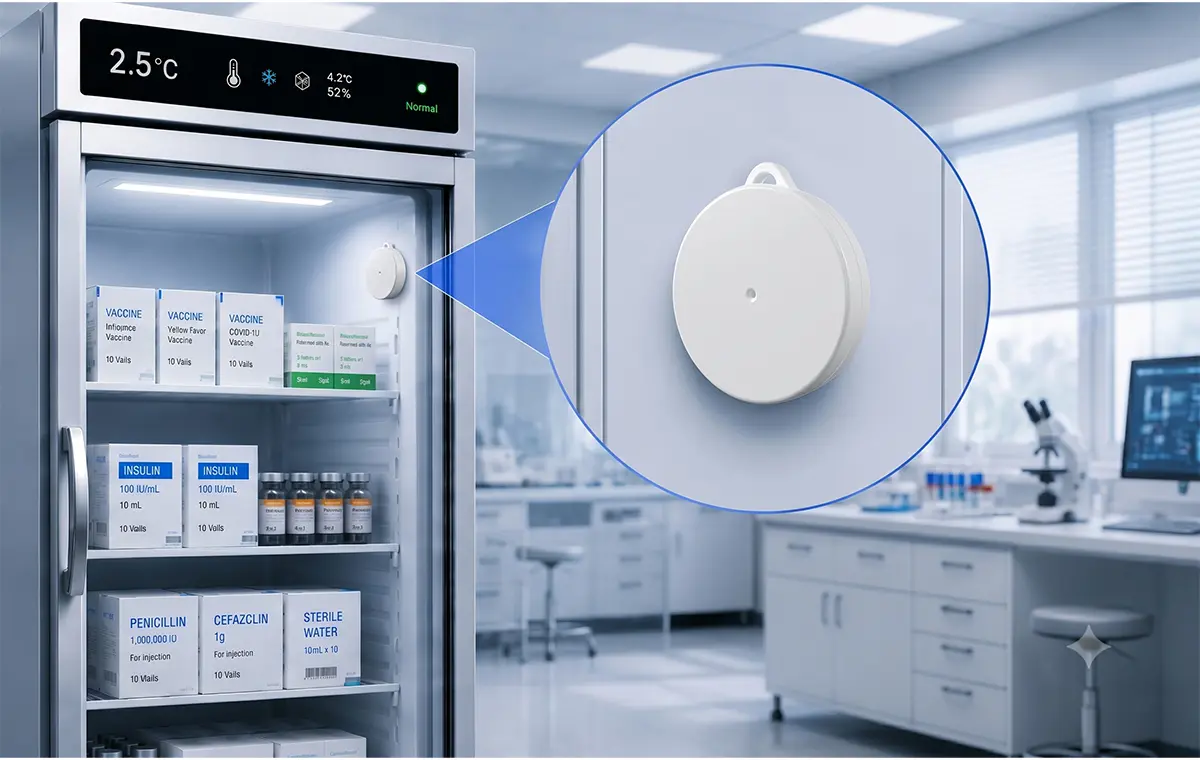

FSC-BP121 IP66 Temperature & Humidity Sensor Beacon

FSC-BP121 a Bluetooth 5.1 Temperature and Humidity Sensor Beacon. This product can help to monitor real-time environmental temperature and humidity near the beacon. Operating with Feasycom’s FeasyMonitor APP and Gateway Device FSC-BP201, users can take advantage of the remote temperature & humidity monitoring. This product uses CR3032 battery as the power source, the battery life can reach up to 280 days.



Besides, this product can also act as a regular Bluetooth beacon, simultaneously supports iBeacon, Eddystone (URL and UID), AltBeacon profiles. Working with FeasyBeacon APP, users can set up the broadcast data, broadcast interval, transmit power, etc. Supports up to 10 slots advertising frames.



With the available FREE iOS & Android FeasyBeacon app & SDK, users can develop their own applications easily.

Datasheet
Features
Applications
Functions
Specifications
Get a Sample

Features

        • Mini Size Bluetooth® 5.1 Low Energy portable IP66 temperature and humidity sensor beacon. Integrated Dialog DA14531 chipset.
        • 280 days Battery Life @ ADV Interval = 1300 ms; TX Power = 0 dBm
          • Additional Components: Optional button, optional LED
            • Certified with: CE, FCC
              • General:
                • Φ38mm, H:9.6mm mini-size round-shape design
                • Pre-programmed with standard beacon firmware
                • Up to 10 slots of Advertising Frames
                • Supports iBeacon, Eddystone (e.g. URL, UID, TLM), AltBeacon
                • Configurable by Free FeasyBeacon Mobile App and SDK
                • Customizable Color, Logo, Hardware, Software
                • Support the OTA upgrade

Applications

Broadcast
Sensor

Functions

Item Description
Advertising Format FscBeacon, Eddystone (URL/ UID/ TLM), iBeacon, AltBeacon
Configuring Method FeasyBeacon SDK compiled app (e.g. FeasyBeacon app)
Advertising Interval Default 1300 ms, range from 100 ms to 10000 ms
Security Access password required, Default Pin Code 000000
Max Number of Broadcast 10 Slots configurable advertising frames
Default Broadcast Interval 1300 ms for iBeacon & Eddystone
System Compatibility iOS 10.0+, Android 7.0+
Advertising Distance Up to 200m (open area)
Firmware Upgrading OTA (upgrade firmware over the air)
Power ON/OFF Long press central area for power on / off
Status Indication LED blink

Specifications

Functional Specs
Advertising Format FscBeacon, Eddystone (URL/ UID/ TLM), iBeacon, AltBeacon
Configuring Method FeasyBeacon SDK compiled app (e.g. FeasyBeacon app)
Advertising Interval Default 1300 ms, range from 100 ms to 10000 ms
Security Access password required, Default Pin Code 000000
Max Number of Broadcast 10 Slots configurable advertising frames
Default Broadcast Interval 1300 ms for iBeacon & Eddystone
System Compatibility iOS 10.0+, Android 7.0+
Advertising Distance Up to 200m (open area)
Firmware Upgrading OTA (upgrade firmware over the air)
Power ON/OFF Long press central area for power on / off
Status Indication LED blink





Product Specs
Chipset DA14531
Bluetooth Version Bluetooth 5.1
TX power -19.5 dBm to +2.5 dBm
Antenna PCB Coil antenna
Power Supply CR3032
Components Button (optional), LED (optional)
Humidity Range 0 ~ 100% RH
Humidity Accuracy 2 % RH (Typical)
Temperature Accuracy 0.2 ℃ (Typical)
Battery Life Up to 280 days (ADV Interval = 1300 ms; TX Power = 0 dBm)
Certification CE, FCC
Material ABS plastic
Color White or customized
Dimensions (mm) Φ38mm, H:9.6mm
Net weight 8.45 g
Operating Temperature -20°C to +60°C
Protection Grade IP66
