FSC-BP103C IP66 Mini-Size Long-Range Tag Beacon

FeasyBeacon FSC-BP103C is a IP66 mini-size & long-range battery-powered Bluetooth 5.1 Low Energy proximity-beacon, it simultaneously supports iBeacon, Eddystone (e.g. URL, UID, TLM), AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames.



With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own application, such as Broadcast, Proximity Marketing, Digital Signage, Indoor Location, Asset Tracking, Vehicle Tracking, etc. Meanwhile, FeasyBeacon SDK compiled app is available to download from both the iOS and Android platform (search ‘FeasyBeacon’ to download).

Datasheet
Features
Applications
Functions
Specifications
Get a Sample

Features

        • Mini-Size & Long-Range Bluetooth® 5.1 Low Energy portable tag beacon. Integrated Dialog DA14531 chipset.
        • 3 Years Battery Life @ ADV Interval = 1300 ms; TX Power = 0 dBm
          • Variety of Additional Components (e.g. Button, LED, optional G-sensor)
            • Waterproof: IP66
              • General:
                • 37.8mm × 33.8mm × 7.9mm mini-size tri-angle tag design
                • Replacable CR3032 battery
                • Pre-programmed with standard beacon firmware
                • Up to 10 slots of Advertising Frames
                • Supports iBeacon, Eddystone (e.g. URL, UID, TLM), AltBeacon
                • Configurable by Free FeasyBeacon Mobile App and SDK
                • Customizable Color, Logo, Hardware, Software
                • Advertising range up to 450m in open area
                • Support the OTA upgrade

Applications

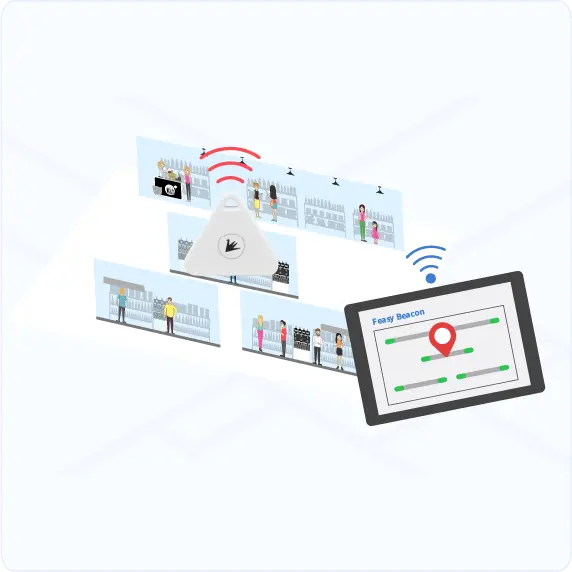

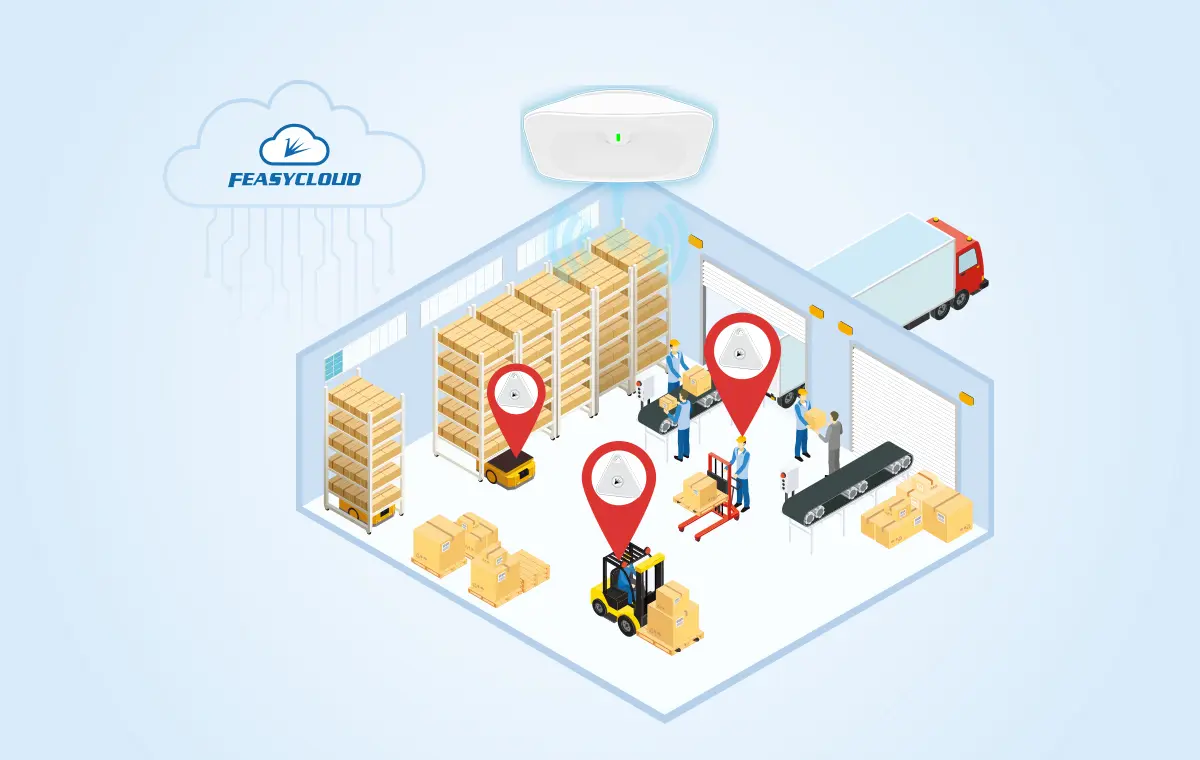

Asset Tracking
Broadcast
Digital Signage

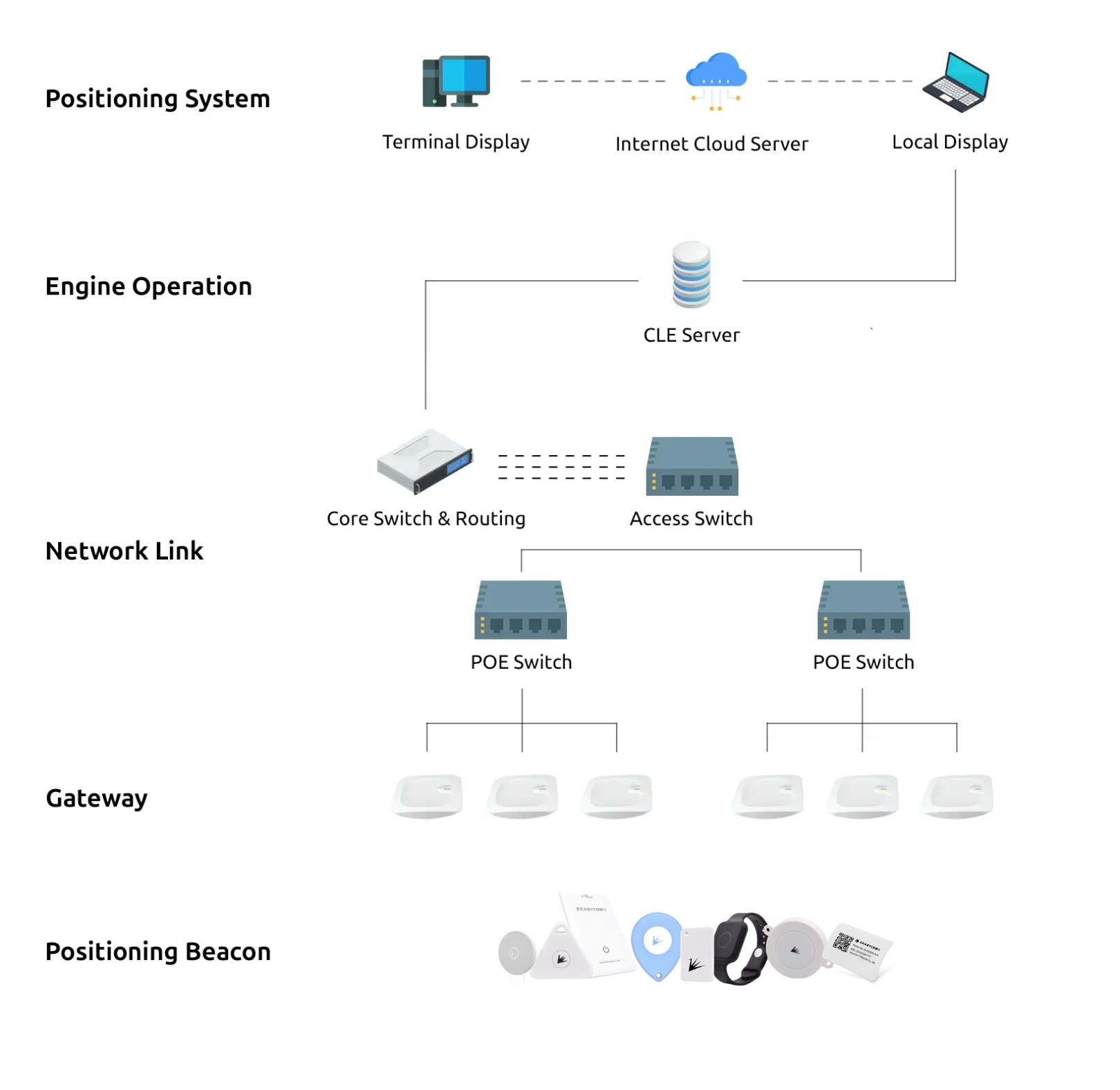

Indoor Location
Outdoor Location
Proximity Marketing
Vehicle Tracking

Functions

Item Description
Advertising Format Eddystone (URL/ UID/ TLM), iBeacon, AltBeacon
Configuring Method FeasyBeacon SDK compiled app (e.g. FeasyBeacon app)
Advertising Interval Default 1300 ms, range from 100 ms to 10000 ms
Security Access password required, Default Pin Code 000000
Max Number of Broadcast 10 Slots configurable advertising frames
Default Broadcast Interval 1300 ms for iBeacon & Eddystone
System Compatibility iOS 10.0+, Android 7.0+
Advertising Distance Up to 450m (open area)
Firmware Upgrading OTA (upgrade firmware over the air)
Power ON/OFF Long press central area for power on / off
Status Indication LED blink

Specifications

Item Description
Chipset DA14531
Bluetooth Version Bluetooth 5.1
TX power -19.5 dBm to +2.5 dBm
Antenna PCB Coil antenna
Power Supply CR3032 (replacable)
Components Button, LED, G-sensor (optional)
Battery Life Up to 3 Years (ADV Interval = 1300 ms; TX Power = 0 dBm)
Material ABS plastic
Color White or customized
Dimensions (mm) 37.8 × 33.8 × 7.9
Net weight 7.46 g
Operating Temperature -20°C to +60°C
Protection Grade IP66
