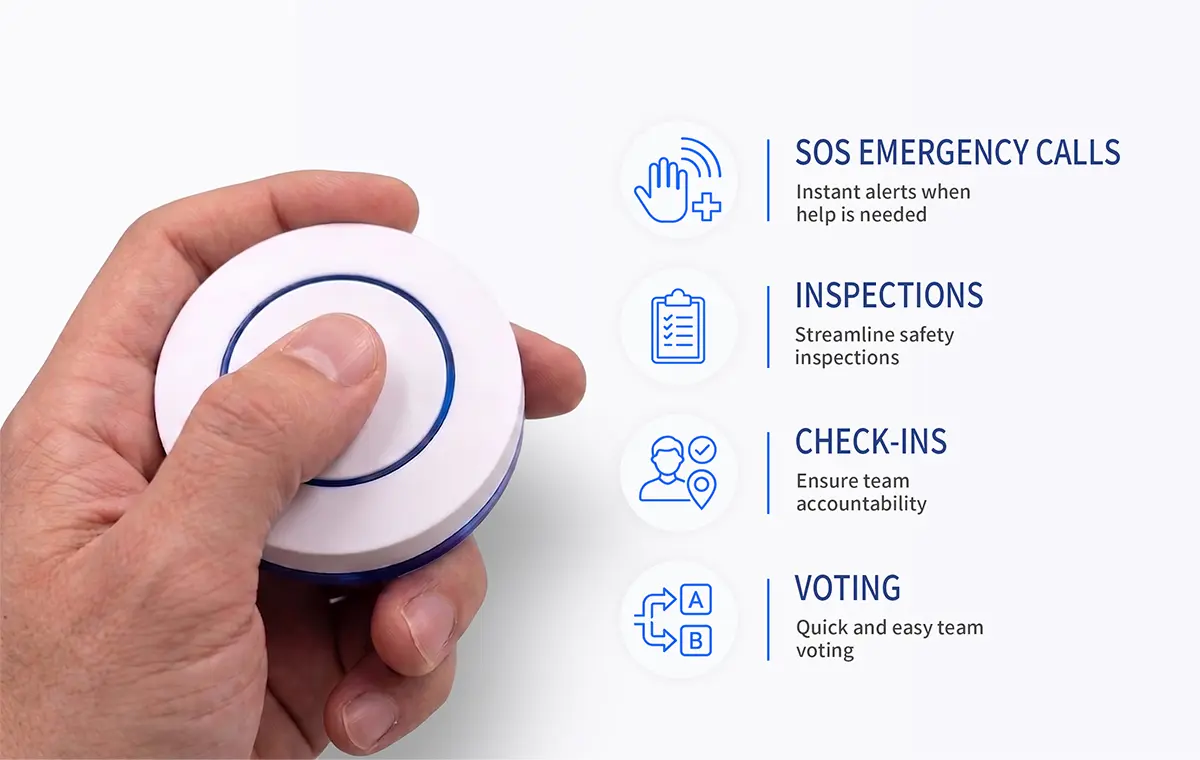

FSC-BP110 Small Size Long Battery Life Bluetooth Beacon
FeasyBeacon FSC-BP110 is a battery-powered Bluetooth 5.1 Low Energy proximity-beacon, it simultaneously supports iBeacon, Eddystone (e.g. URL, UID, TLM), AltBeacon for broadcasting and providing the ability to advertise up to 10 slots of advertising frames.

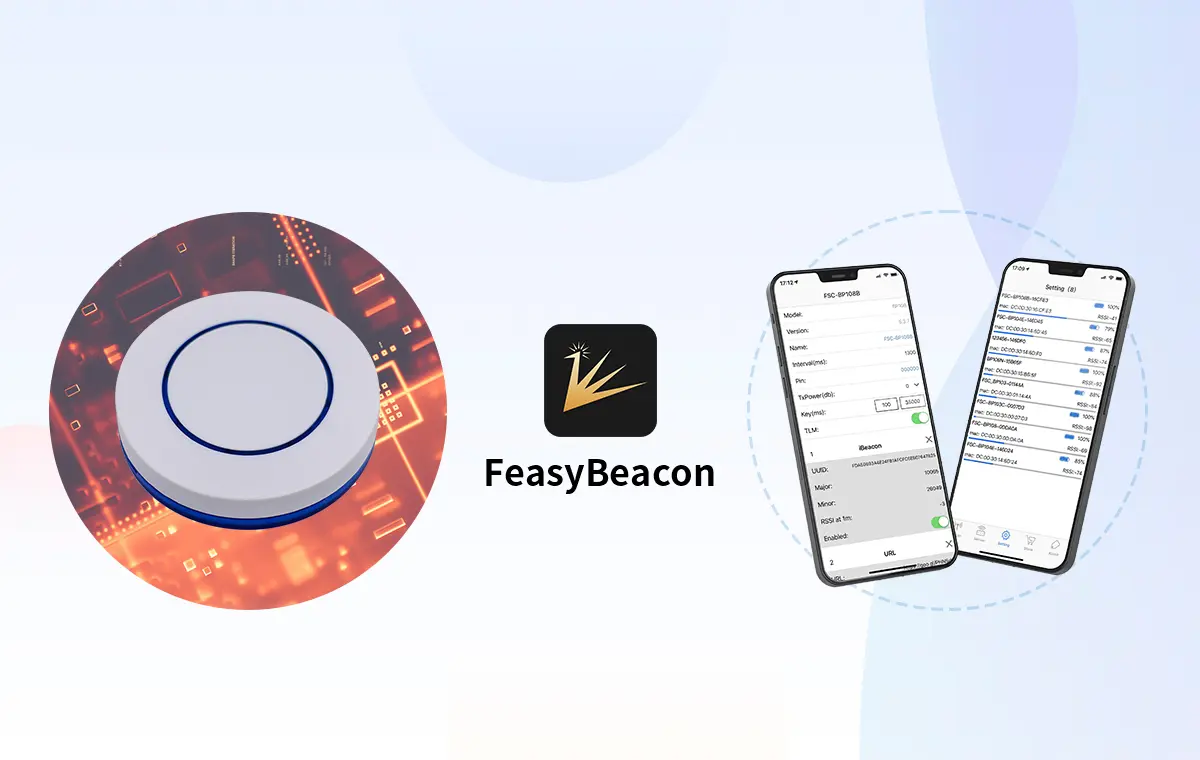

With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own application, such as Broadcast, Proximity Marketing, Digital Signage, Indoor Location, Asset Tracking, Vehicle Tracking, etc. Meanwhile, FeasyBeacon SDK compiled app is available to download from both the iOS and Android platform (search ‘FeasyBeacon’ to download).
Features
-
-
-
-
-
-
- Smail Size and Long Battery Life Bluetooth® 5.1 Low Energy portable smart beacon. Integrated Dialog DA14531 chipset.

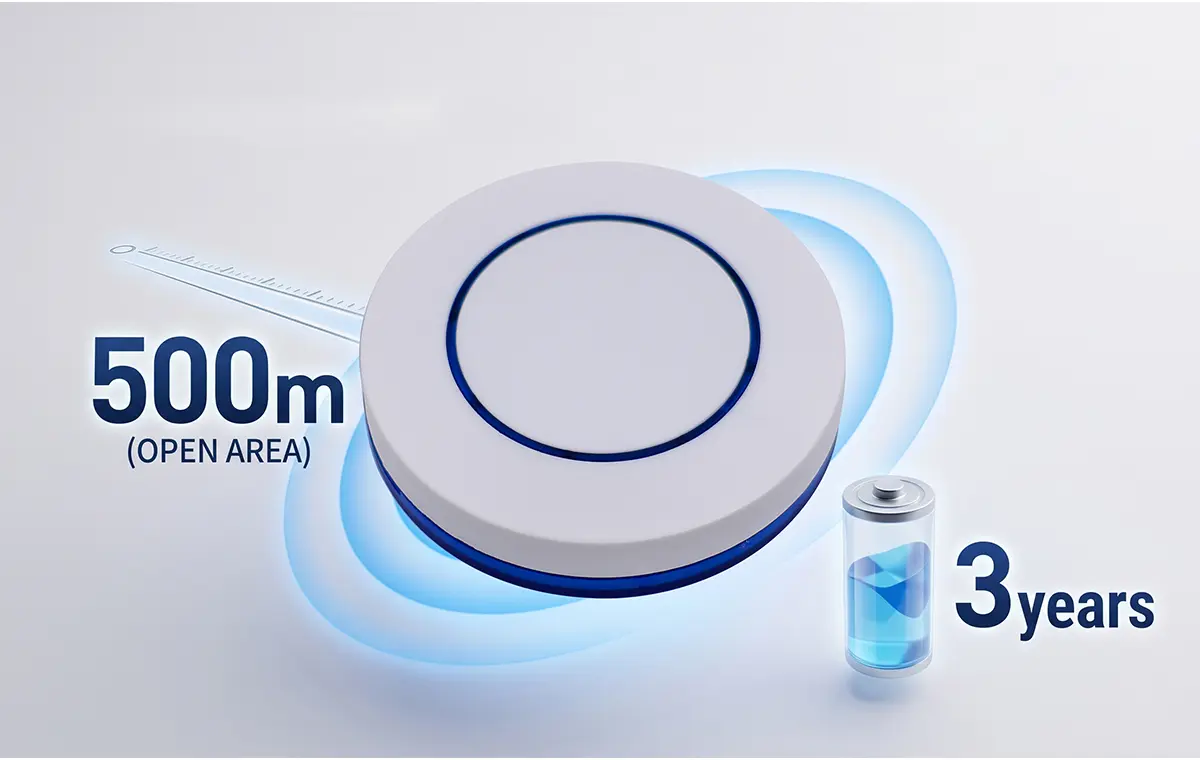

- 3 Years Battery Life @ ADV Interval = 2000 ms; TX Power = 0 dBm
- General:
- 50mm × 50mm × 13mm Locator-shape
- Battery can be Replaced when it is Exhausted
- Pre-programmed with standard beacon firmware
- Up to 10 slots of Advertising Frames
- Supports iBeacon, Eddystone (e.g. URL, UID, TLM), AltBeacon
- Variety of Additional Components (e.g. G-sensor)
- Configurable by Free FeasyBeacon Mobile App and SDK
- Customizable Color, Logo, Hardware, Software
- Advertising range up to 500m in open area
- Support the OTA upgrade
-
-
-
-
-
Applications
Asset Tracking
Broadcast
Digital Signage

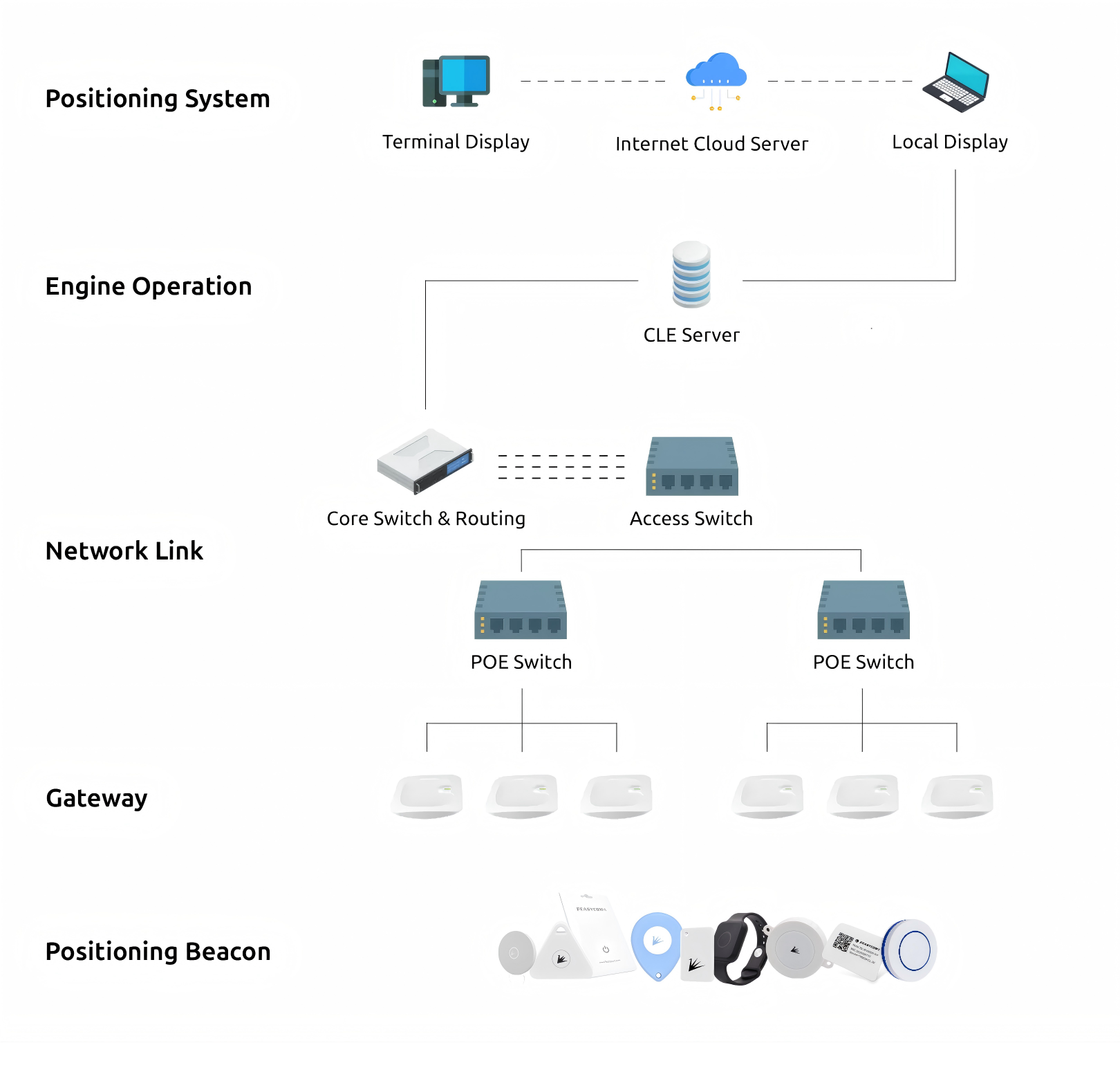

Indoor Location
Proximity Marketing
Vehicle Tracking
Functions
| Item | Description |
| Advertising Format | Eddystone (URL/ UID/TLM), iBeacon, AltBeacon |
| Configuring Method | FeasyBeacon SDK compiled app (e.g. FeasyBeacon app) |
| Advertising Interval | Default 1300 ms, range from 0 ms to 10000 ms |
| Security | Access password required, Default Pin Code 000000 |
| Max Number of Broadcast | 10 Slots configurable advertising frames |
| Default Broadcast Interval | 1300 ms for iBeacon & Eddystone |
| System Compatibility | iOS 7.0+, Android 4.3+ |
| Advertising Distance | Up to 500m (open area) |
| Firmware Upgrading | OTA (upgrade firmware over the air) |
Specifications
| Item | Description |
| Chipset | DA14531 |
| Bluetooth Version | Bluetooth 5.1 |
| TX power | -19.5 dBm to + 2.5 dBm |
| Antenna | PCB Coil antenna |
| G-Sensor | Optional |
| Power Supply | CR2032 |
| Power On | Long press central area, the light flashes 3 times |
| Power off | Long press central area, the light keeps on then off |
| Battery Life | 3 Year (ADV Interval = 1300 ms; TX Power = 0 dBm) |
| Material | ABS+PC plastic |
| Color | White or customized |
| Size | 50*50*13mm |
| Net Weight | 18.6g |
| Operating temperature | -20°C to +60°C |
