FSC-BP110 Long-Life Bluetooth Beacon
FSC-BP110 is a multi-broadcast beacon built on Bluetooth 5.1 Low Energy technology, supporting emergency rescue, on-site check-in, point patrol, and one-press positioning. With up to 10 independent broadcast slots, it transmits multiple data streams simultaneously, enabling parallel operations and flexible configuration. Suitable for deployment in hospital care, factory workshops, warehouse logistics, and smart campuses, it provides reliable support for personnel safety assurance, digitalized inspection workflows, and visualized asset management.

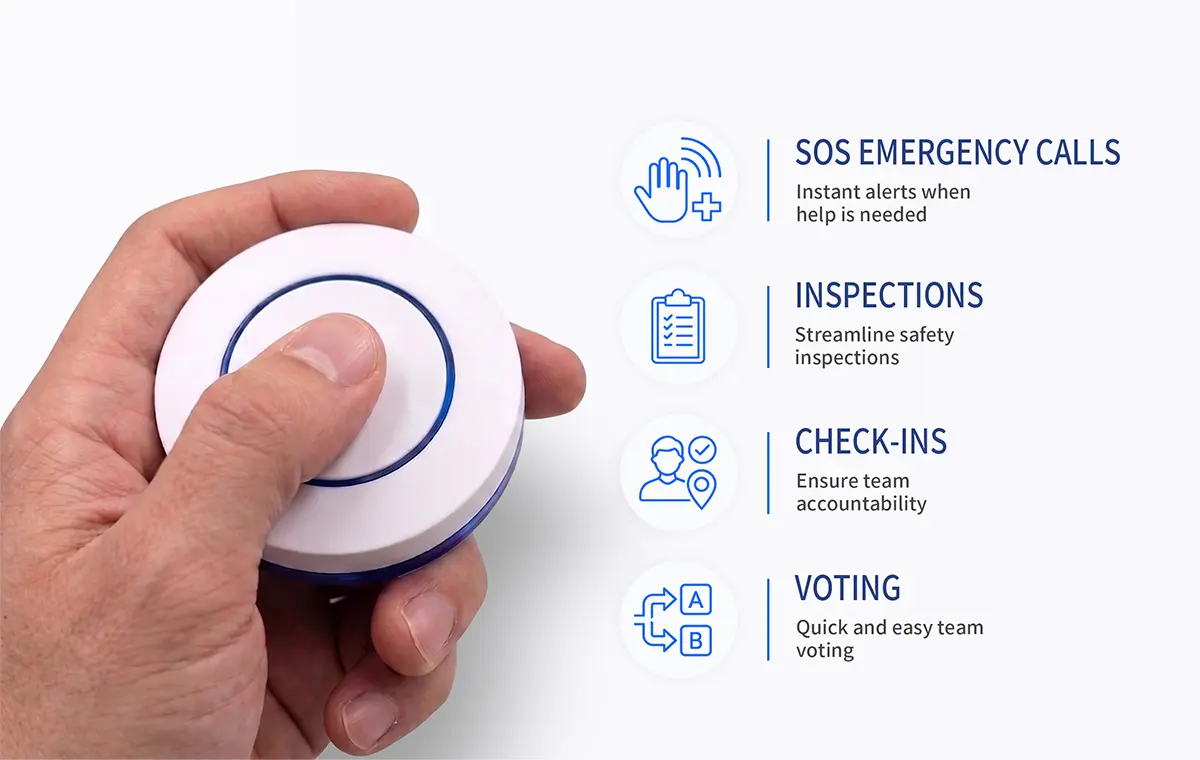

- SOS Quick-Access Button
- 콤팩트 & Lightweight Design
- 블루투스 5.1 낮은 에너지
- Multi-Protocol Broadcast Support
- 최대 3 배터리 수명
- 교체 가능한 배터리
- Up to 500m Broadcast Distance
- Optional G-Sensor
Long Range · Long Battery Life
Leveraging Bluetooth 5.1 기술, it delivers stable transmission up to 500 m in open environments, reducing deployment density.
With up to 3 years battery life under default settings, it minimizes battery replacement and lowers maintenance cost.
Open SDK & 앱
Open mobile access for function and parameter configuration, enabling secondary development with the FeasyBeacon SDK. The dedicated APP delivers visual parameter editing, real-time status tracking and remote device management.
SOS One-Press Positioning
The BP110 beacon mounts easily onto a wheelchair armrest or backrest. In an emergency, a single press triggers an SOS alert. The management dashboard instantly displays the wheelchair’s location and the resident’s information, enabling rapid caregiver response. Continuous Bluetooth broadcasting relays real-time location data, supporting trajectory tracking and geofencing alerts for round-the-clock safety protection in nursing homes, hospital care zones, and similar environments.
응용 프로그램
명세서
| 재료 | ABS+PC plastic | ||||
| 색상 | 흰색 또는 맞춤형 | ||||
| 크기 | Φ100 × 13 mm | ||||
| Net Weight | 18.6 g | ||||
| 전원 공급 장치 | CR2032 | ||||
| 배터리 수명 | 최대 3 Year（Default Setting） | ||||
| Information View App | FeasyBeacon SDK 컴파일 앱 (예를 들어. Feasybeacon 앱) | ||||
| 블루투스 버전 | ble 5.1 | ||||
| 광고 형식 | iBeacon, 에디 스톤 (URL/UID/TLM), Altbeacon | ||||
| 전력을 전송하십시오 | -19.5dBm～+2.5dBm, Default 0dBm, configurable | ||||
| 방송 간격 | 기본 2000 iBeacon의 MS & 에디 스톤, configurable | ||||
| 방송 거리 | 최대 500 중 (열린 공간) | ||||
| 작동 온도 | -20°C ~ 60°C | ||||
| 펌웨어 업그레이드 | 오타 (Update firmware over the air) |
포지셔닝 & 추적 서비스
FSC-BP110 Long-Life Bluetooth Beacon supports Bluetooth RSSI and Angle of Arrival (AOA) 포지셔닝, delivering up to sub-meter accuracy for personnel and asset tracking.
고객이 독립적으로 배포 가능, 또는 Feasycom의 FeasyCloud 플랫폼으로 가치 창출 시간을 가속화하세요..
