FSC-H02
The FSC-H02 is a multifunctional UHF RFID Inventory Handheld Terminal, compliant with ISO 18000-6C / EPC C1G2 / Gen2X protocols. It supports China 920–925MHz, FCC 902–928MHz, and ETSI 865–868MHz frequency bands, with adjustable RF output power from 0–33dBm.
The device provides fast tag locating capability and supports Bluetooth, Wi-Fi, and 4G wireless communication. It can connect to mobile phones or tablets via Bluetooth, or exchange data with backend systems over Wi-Fi/4G. It offers an optional Android 10 OS, a 2MP camera, and both 1D/2D barcode scanning.

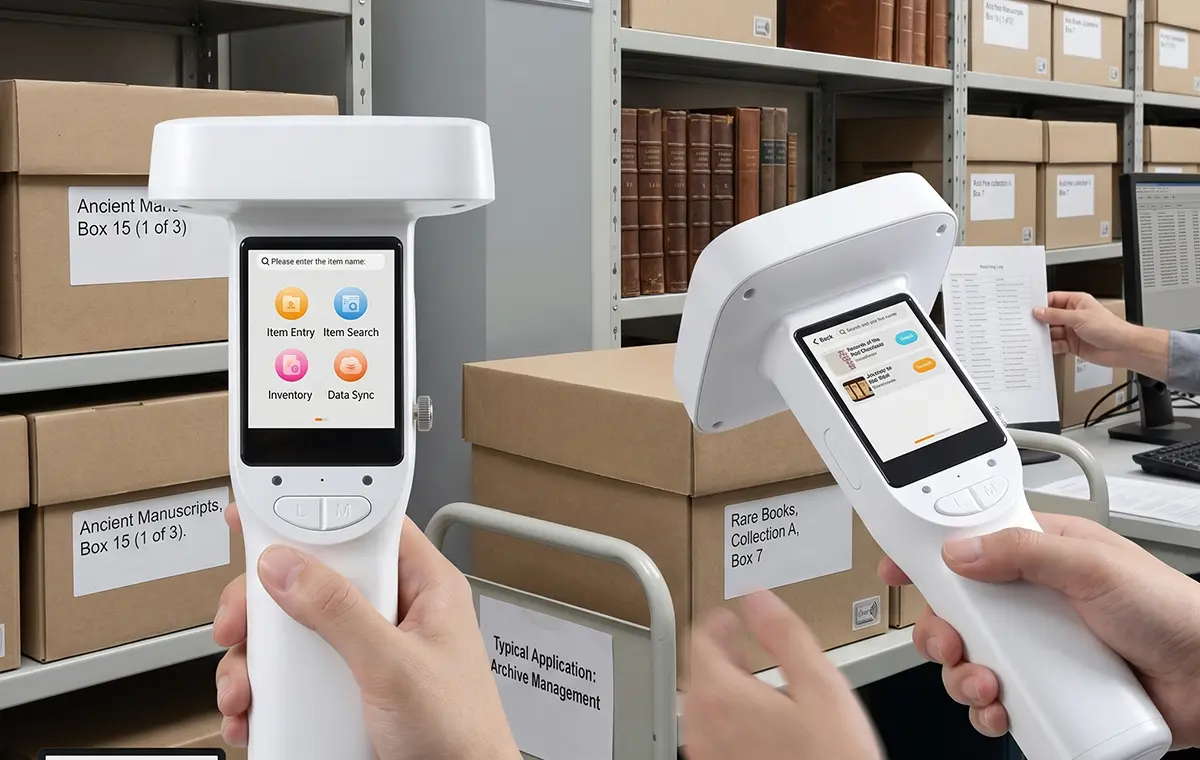

Compared with traditional handheld UHF readers, the FSC-H02 is lightweight and provides long-range reading, rapid tag locating, and high anti-interference performance, making it suitable for libraries, 기호 논리학, 창고, 자산 관리, retail, 그리고 더.
특징
- Built-in circularly polarized antenna with adjustable power for both long-range reading and close-range tag pinpointing—ideal for book/library, 기호 논리학, and retail single-item search.
- Built-in orientation sensor with patented algorithm for rapid direction guidance and front-facing vibration feedback.
- Optional large storage capacity, supporting over 50,000 tag records.
- Supports standalone operation or Bluetooth collaboration with smart devices.
- Direct Wi-Fi/4G connectivity for backend data transmission.
- Supports UHF RFID + optional 1D/2D barcode scanning.
- Uses industry-leading high-performance RF chipset for superior reading speed, 정확성, and anti-interference capability.
- Custom-designed housing; ergonomic UI.
- Supports audio prompts + vibration feedback.
- Supports near-field issuing mode with AI algorithm to prevent mis-issuing tags.
- Optional high-capacity battery pack, up to ≥10000mAh.
- Dual-battery design, supporting hot-swap without power-off.
응용 프로그램
기능
| Main 기능 | |
| 목 | 사양 |
| Operating System | 기계적 인조 인간 10 (선택 과목) |
| 프로세서 | Quad-core 64-bit ARM Cortex-A53, 2.0GHZ;
Optional 2GB RAM + 16GB ROM |
| Air Protocol | EPC C1G2 / ISO18000-6C / Gen2X |
| Wireless Communication | Bluetooth 2.1+EDR/3.0/4.1LE/4.2BLE Wi-Fi 2.4/5GHz (802.11A/B/G/N/)
4G LTE-FDD / LTE-TDD / WCDMA / GSM/EDGE |
| 포지셔닝 | GPS + BDS |
| Camera | 2MP camera |
| Charging & 펌웨어 업그레이드
Port |
USB Type-C |
| 배터리 용량 | Main: 5000마 / Secondary: 200마 |
| Operating Mode | 고정 주파수 / Frequency hopping |
| 특징 | Dense-tag reading, OTA 펌웨어 업그레이드, RSSI support |
| RFID Performance | |
| Operating
빈도 |
ETSI 865–868MHz / China 920–925MHz / FCC 902–928MHz |
| RF 출력 전원 | Up to 33dBm |
| Power Adjustment | 1 DB 단계 |
| Channel Bandwidth | ＜ 200khz |
| 안테나 | Circularly Polarized |
| Read Range | 0–15 m (dependent on power, antenna, tag & environment) |
| Write Range | 0–10 m (dependent on conditions) |
| Tag Read Rate | >500 tags/s |
명세서
| 환경 명세서 | |
| 목 | 사양 |
| Operating
온도 |
-20℃～+50 ℃ |
| 저장
온도 |
-40℃～+70 0 |
| Operating Humidity | 10%–95% RH (비 곤충) |
