FSC-BP106

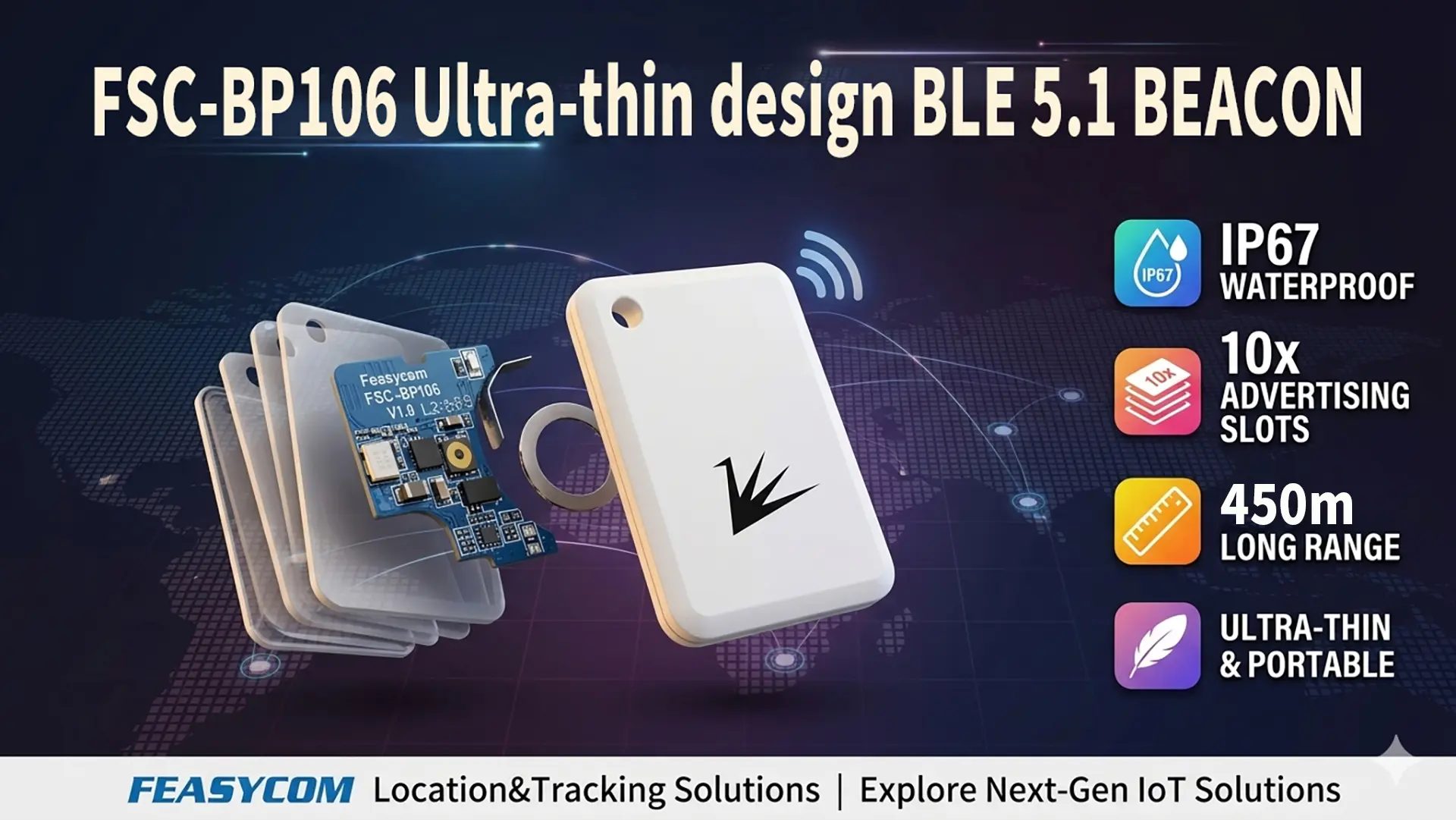

FSC-BP106 Vattentät IP67 Ultra liten storlek Beacon

FeasyBeacon FSC-BP106 is an ultra-small-size waterproof IP67 Bluetooth 5.1 Low Energy smart beacon, it simultaneously supports iBeacon, Virvel (till exempel. Url, Uid), AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames.



With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own application, such as Broadcast, Proximity Marketing, Digital Signage, Indoor and Outdoor Location, Tillgångsspårning, Vehicle Tracking, etc. Meanwhile, FeasyBeacon SDK compiled app is available to download from both the iOS and Android platform (search ‘FeasyBeacon’ to download).

Datablad
Drag
Ansökningar
Funktioner
Specifikationer
Få ett prov

Drag

        • Ultra liten storlek Bluetooth® 5.1 Low Energy portable smart beacon. Integrerad Dialog DA14531 chipset.
        • 2 Years Battery Life @ ADV Interval = 1300 MS; TX Power = 0 dbm
          • Waterproof: IP67
            • Certifierad med: Ces, Fcc, Telek, Bqb
              • Allmän:
                • 36mm × 23.2mm × 3.6mm ultra-small-size card design
                • Pre-programmed with standard beacon firmware
                • Fram till 10 slots of Advertising Frames
                • Supports iBeacon, Virvel (till exempel. Url, Uid, TLM), AltBeacon
                • Configurable by Free FeasyBeacon Mobile App and SDK
                • Customizable Color, Logo, Hardware, Software
                • Advertising range up to 450m in open area
                • Stödja OTA -uppgraderingen

Ansökningar

Tillgångsspårning
Broadcast
Digital Signage
Indoor Location
Proximity Marketing
Vehicle Tracking

Funktioner

Punkt Description
Advertising Format Virvel (URL/ UID/ TLM), ibeakon, AltBeacon
Configuring Method FeasyBeacon SDK compiled app (till exempel. FeasyBeacon app)
Advertising Interval Standard 1300 MS, range from 100 ms to 10000 MS
Säkerhet Access password required, Default Pin Code 000000
Max Number of Broadcast 10 Slots configurable advertising frames
Default Broadcast Interval 1300 ms for iBeacon & Virvel
System Compatibility iOS 10.0+, Android 7.0+
Advertising Distance Up to 450m (öppen område)
Firmware Upgrading Ota (upgrade firmware over the air)
Power ON/OFF Long press central area for power on / av

Specifikationer

Punkt Description
Chipset DA14531
Bluetooth -version Bluetooth 5.1
TX POWER -19.5 dbm till +2.5 dbm
Antenn PCB Coil antenna
Strömförsörjning CR2025
G-sensor Frivillig
Battery Life Fram till 2 Years (ADV Interval = 1300 MS; TX Power = 0 dbm)
Certifiering Ces, Fcc, Telek, Bqb
Material ABS plastic
Färg White or customized
Mått (mm) 36 × 23.2 × 3.6
Net weight 4.46 g
Driftstemperatur -20°C to +60°C
Protection Grade IP67
