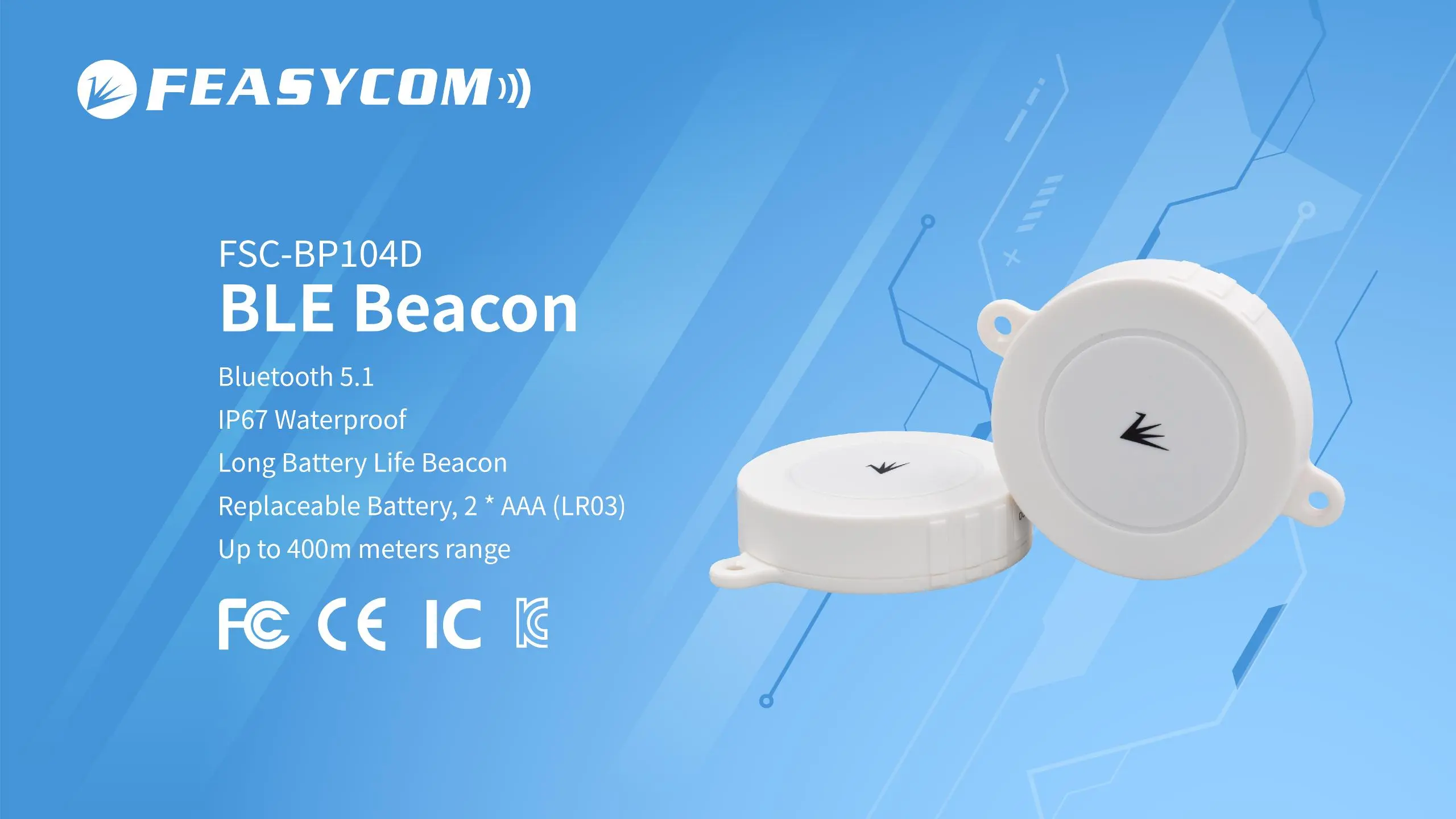

FSC-BP104D IP67 langlebiger Bluetooth-Beacon
FSC-BP104D is a Bluetooth 5.1 Low Energy beacon designed for asset tracking, warehouse management, indoor positioning, und industrielle IoT-Anwendungen. Featuring an IP67-rated enclosure, replaceable batteries, ultra-long battery life of up to 10 years, a broadcasting range of up to 400 Meter, and flexible installation options, it delivers reliable performance in harsh industrial and outdoor environments. The FSC-BP104D can be rapidly deployed across smart offices, logistics and warehousing, retail, equipment management, and smart campus applications for efficient tracking, monitoring, and intelligent asset management.
- Bluetooth® 5.1 Niedrige Energie
- Flexible Installation
- IP67 wasserdicht & staubdicht
- iBeacon/Eddystone-Unterstützung
- Bis zu 400 m Sendeentfernung
- Bis zu 10 slots of Advertising Frames
- Up to10-Years Ultra-long life
- In mehreren Szenarien einsetzbar
IP67 wasserdicht
FSC-BP104D features a fully sealed ABS enclosure that effectively protects against dust, Feuchtigkeit, and temporary water immersion, ensuring stable and reliable performance in outdoor, industriell, and humid environments.
Flexible Installation
Supports both screw mounting and 3M adhesive installation methods, allowing flexible deployment across various equipment, assets, and industrial application scenarios to meet installation requirements in different environments.
Standort & Tracking
FSC-BP104D is a low-power Bluetooth beacon specifically designed for indoor positioning and asset tracking applications. It is suitable for warehouse management, asset monitoring, Indoor-Navigation, and proximity marketing scenarios. Through stable BLE broadcasting and real-time data transmission, the FSC-BP104D enables accurate positioning, movement tracking, status monitoring, and nearby information delivery, helping businesses improve operational efficiency and intelligent management capabilities.
Anwendungen
Spezifikationen
| Material | ABS-Kunststoff | ||||
| Farbe | Weiß, oder individuell angepasst | ||||
| Größe | 86 X 65.7 X 17.2 mm | ||||
| Nettogewicht | 28 G | ||||
| Stromversorgung | 2 × AAA (austauschbar) | ||||
| Schutzklasse | IP67 | ||||
| Akkulaufzeit | Bis zu 10 Jahre | ||||
| Informationsansicht-App | FeasyBeacon | ||||
| Bluetooth-Version | BLE 5.1 | ||||
| Werbeformat | iBeacon, Eddystone (URL/UID/TLM), AltBeacon | ||||
| Sendeleistung | -19.5dBm～+2,5dBm, Standard 0dBm, konfigurierbar | ||||
| Sendeintervall | 100ms ~ 10000 ms, Standard: 1300MS, konfigurierbar | ||||
| Sendeentfernung | Bis zu 400m (Offener Bereich) | ||||
| Betriebstemperatur | -20°C ~ 60 °C | ||||
| Firmware-Upgrade | OTA (Over-the-Air) |
Positionierung & Tracking-Dienste
FSC-BP104D IP67 Long-Life Bluetooth Beacon both Bluetooth RSSI and Angle of Arrival (AoA) Technologien, delivering up to sub-meter high-precision positioning and tracking for assets. Kunden können es unabhängig bereitstellen, Oder beschleunigen Sie die Wertschöpfung mit der FeasyCloud-Plattform von Feasycom.
