FSC-BP104D IP67 Long-Life Industrial Bluetooth Tracking Beacon
FSC-BP104D is a Bluetooth 5.1 Low Energy beacon designed for asset tracking, warehouse management, posizionamento interno, e applicazioni IoT industriali. Featuring an IP67-rated enclosure, replaceable batteries, ultra-long battery life of up to 10 anni, a broadcasting range of up to 400 metri, and flexible installation options, it delivers reliable performance in harsh industrial and outdoor environments. The FSC-BP104D can be rapidly deployed across smart offices, logistics and warehousing, vedere al dettaglio, equipment management, and smart campus applications for efficient tracking, monitoring, and intelligent asset management.
- Bluetooth® 5.1 Bassa energia
- Flexible Installation
- IP67 impermeabile & dustproof
- iBeacon/Eddystone/AltBeacon Support
- Up to 400m broadcast distance
- Fino a 10 slot di cornici pubblicitarie
- Up to10-Years Ultra-long life
- Multi-scenario deployable
IP67 impermeabile
FSC-BP104D features a fully sealed ABS enclosure that effectively protects against dust, moisture, and temporary water immersion, ensuring stable and reliable performance in outdoor, industriale, and humid environments.
Flexible Installation
Supports both screw mounting and 3M adhesive installation methods, allowing flexible deployment across various equipment, assets, and industrial application scenarios to meet installation requirements in different environments.
Posizione & Tracking
FSC-BP104D is a low-power Bluetooth beacon specifically designed for indoor positioning and asset tracking applications. It is suitable for warehouse management, asset monitoring, Navigazione interna, and proximity marketing scenarios. Through stable BLE broadcasting and real-time data transmission, the FSC-BP104D enables accurate positioning, movement tracking, status monitoring, and nearby information delivery, helping businesses improve operational efficiency and intelligent management capabilities.
Applicazioni
Specifiche
| Materiale | ABS plastic | ||||
| Colore | Bianco, o personalizzato | ||||
| Misurare | 86 X 65.7 X 17.2 mm | ||||
| Peso netto | 28 G | ||||
| Alimentazione elettrica | 2 × AAA (replaceable) | ||||
| Protection Rating | IP67 | ||||
| Durata della batteria | Fino a 10 Anni | ||||
| Information View App | FeasyBeacon | ||||
| Versione Bluetooth | Ble 5.1 | ||||
| Formato pubblicitario | IBEACON, Eddystone (URL/UID/TLM), Altbeacon | ||||
| Trasmettere potenza | -19.5dBm～+2.5dBm, Default 0dBm, configurable | ||||
| Intervallo di trasmissione | 100ms～10000ms, Predefinito: 1300SM, configurable | ||||
| Broadcast Distance | Fino a 400 m (Open Area) | ||||
| Temperatura operativa | -20°C ~ 60°C | ||||
| Aggiornamento del firmware | Ota (Over-The-Air) |

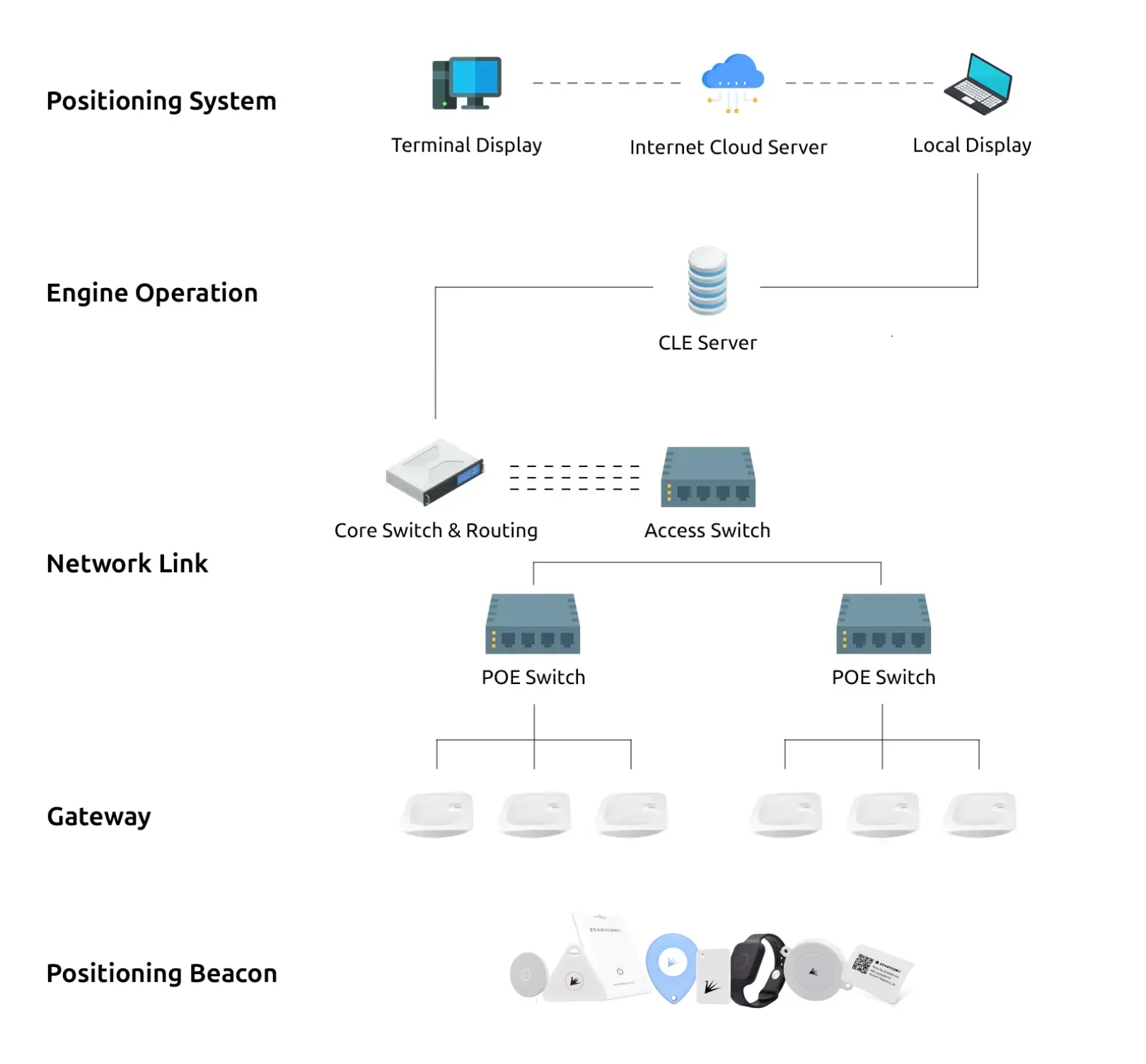

Posizionamento & Tracking Services
FSC‑BP104D IP67 waterproof long-life Beacon supports Bluetooth AoA/AoD positioning services for sub‑meter personnel positioning and tracking.
Customers can deploy it independently, or accelerate time‑to‑value with Feasycom’s FeasyCloud platform.
