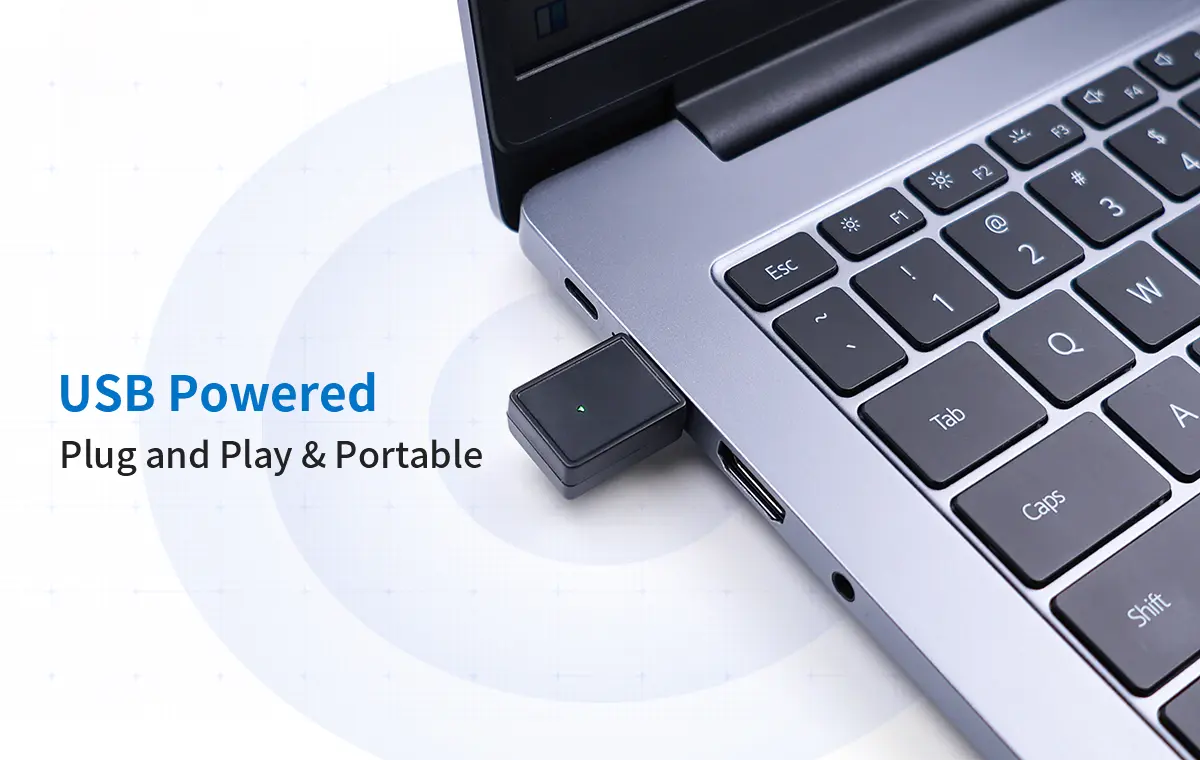

FSC-BP101E USB-Powered Bluetooth Beacon
FSC-BP101E is an ultra-compact, USB-powered Bluetooth Low Energy beacon built on Bluetooth 5.2 Technologie, supporting iBeacon, Eddystone, and AltBeacon multi-protocol broadcasting. Powered directly via a standard USB interface, it requires no battery maintenance and supports up to 10-channel simultaneous broadcasting. Plug-and-play with up to 450-meter broadcast coverage, it is ideal for long-term fixed deployment scenarios such as digital signage linking, information broadcasting, smart retail, and indoor navigation.
- USB Plug & Spielen
- Multi-Protocol Broadcast Support
- Bluetooth 5.2 Dual-Modus
- Bis zu 10 Slots von Werberahmen
- Up to 450m Broadcast Range
- OTA Remote Firmware Upgrade
- Customizable LOGO
- Multi-Scenario Deployment

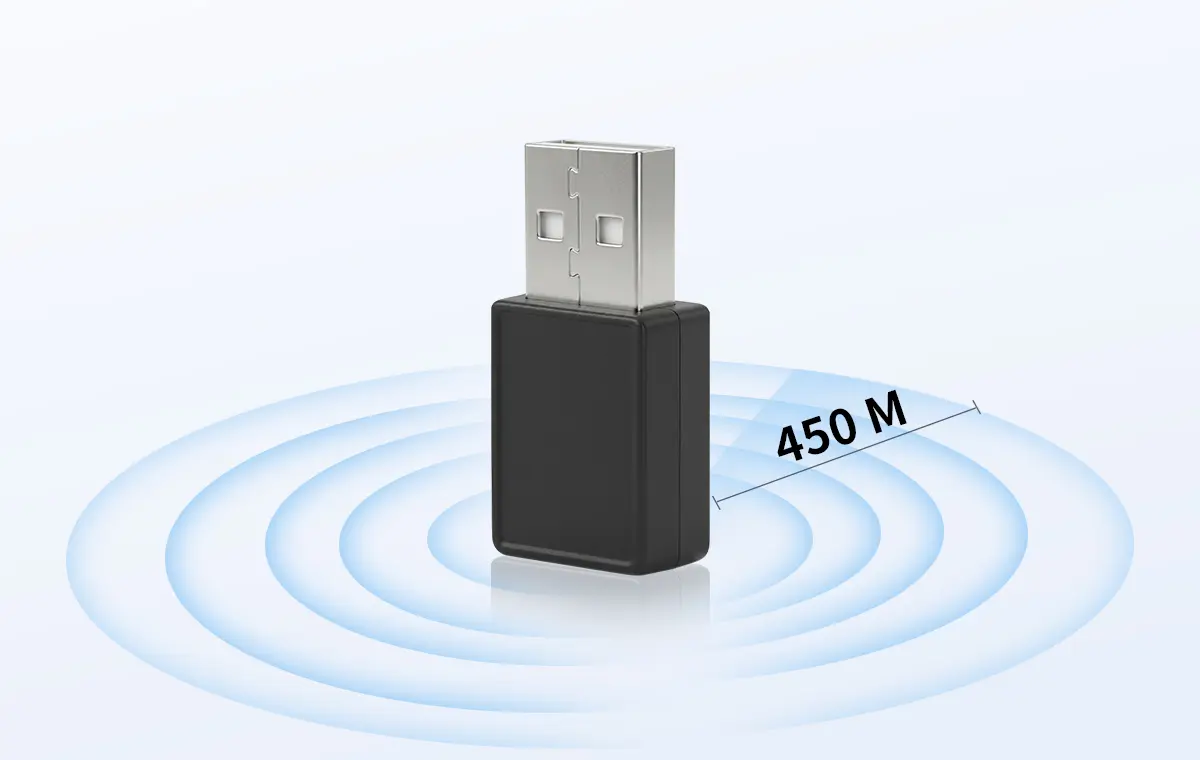

Ultra-Long-Range Broadcasting
Ausgestattet mit Bluetooth 5.2 technology and up to +5 DBM -Übertragungsleistung, it delivers stable broadcasting up to 450 meters in open areas. A single device covers a wide area, significantly reducing deployment density.

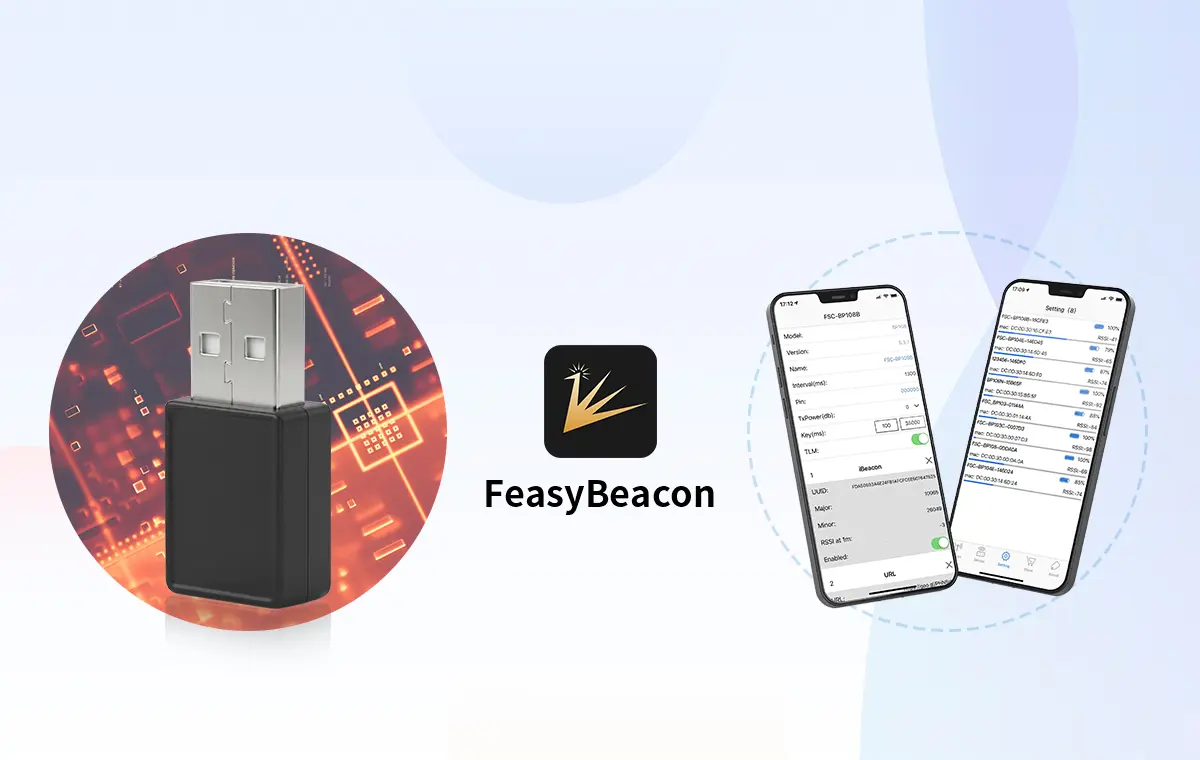

Open SDK & App
Open mobile access for function and parameter configuration, enabling secondary development with the FeasyBeacon SDK. The dedicated APP delivers visual parameter editing, real-time status tracking and remote device management.

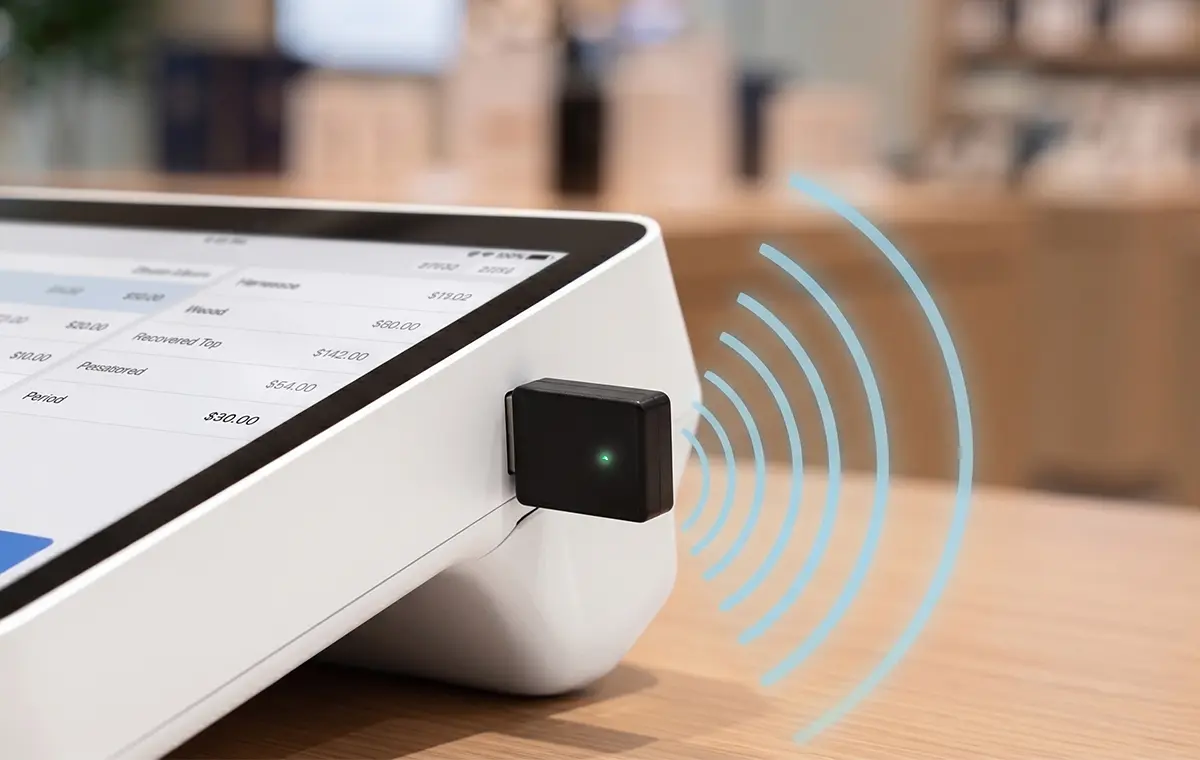

USB Continuous Power
Powered directly via a standard USB interface, it is plug-and-play, completely eliminating the need for battery replacements and maintenance costs. The device stays online continuously with stable operation, making it ideal for long-term fixed deployments such as digital signage, information terminals, and retail stores.
Anwendungen
Spezifikationen
| Material | ABS+PC-Kunststoff | ||||
| Farbe | Black or customized | ||||
| Größe | 32.8 x16.2 x 8 mm | ||||
| Nettogewicht | 3.5 G | ||||
| Stromversorgung | 5V USB | ||||
| Information View App | FeasyBeacon SDK Compiled App (z.B. FeasyBeacon App) | ||||
| Bluetooth -Version | Bluetooth 5.2 Dual -Modus | ||||
| Werbeformat | Ibeacon, Eddystone (URL/UID/TLM), Altbeakon | ||||
| Strom übertragen | Bis zu +5dbm | ||||
| Sendeintervall | Standard 100 MS für Ibeacon & Eddystone, configurable | ||||
| Broadcast Distance | Bis zu 450 M (Offener Bereich) | ||||
| Schutz | IP 40 | ||||
| Betriebstemperatur | -10°C ~ 70°C | ||||
| Firmware -Upgrade | Ota (Update firmware over the air) |
