Balise Bluetooth alimentée par USB FSC-BP101E
FSC-BP101E is an ultra-compact, USB-powered Bluetooth Low Energy beacon built on Bluetooth 5.2 technologie, supporting iBeacon, Eddystone, and AltBeacon multi-protocol broadcasting. Powered directly via a standard USB interface, it requires no battery maintenance and supports up to 10-channel simultaneous broadcasting. Plug-and-play with up to 450-meter broadcast coverage, it is ideal for long-term fixed deployment scenarios such as digital signage linking, information broadcasting, smart retail, and indoor navigation.
- USB Plug & Play
- Multi-Protocol Broadcast Support
- Bluetooth 5.2 Double mode
- Jusqu'à 10 emplacements de cadres publicitaires
- Up to 450m Broadcast Range
- OTA Remote Firmware Upgrade
- Customizable LOGO
- Multi-Scenario Deployment
Ultra-Long-Range Broadcasting
Equipé de Bluetooth 5.2 technology and up to +5 dBm transmit power, it delivers stable broadcasting up to 450 mètres dans les zones ouvertes. A single device covers a wide area, significantly reducing deployment density.
Open SDK & APPLICATION
Open mobile access for function and parameter configuration, enabling secondary development with the FeasyBeacon SDK. The dedicated APP delivers visual parameter editing, real-time status tracking and remote device management.

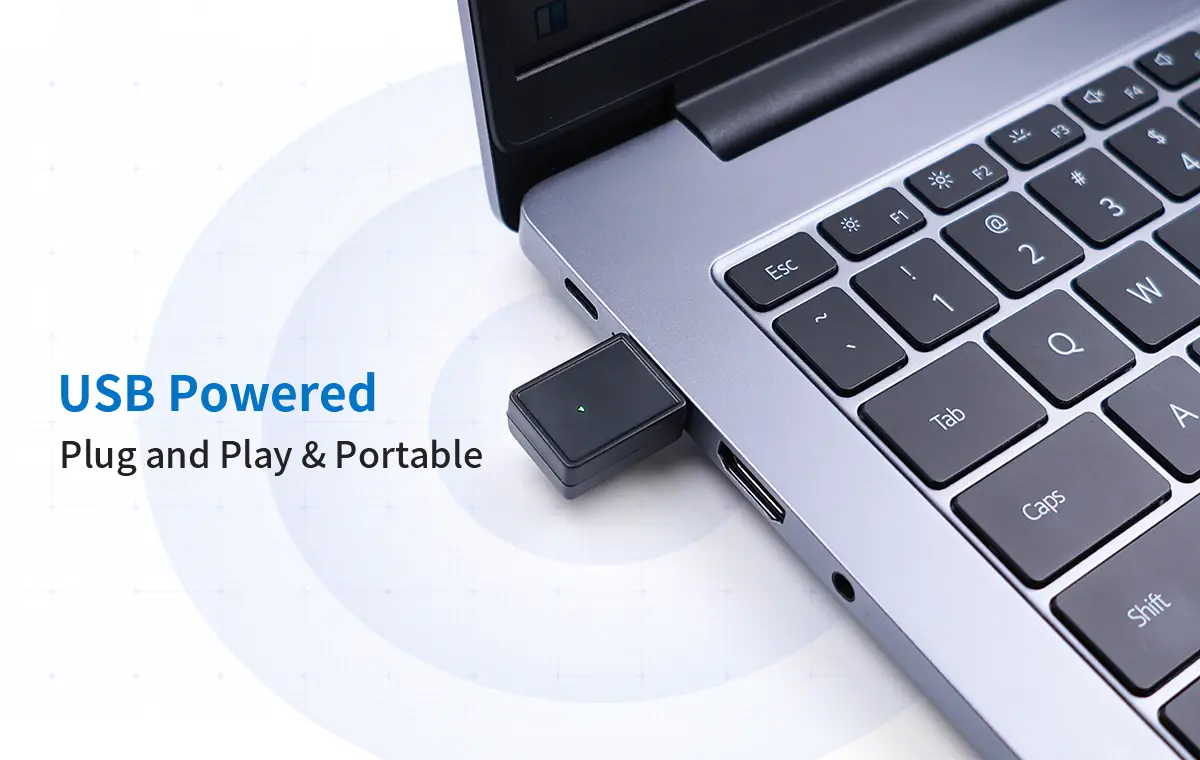

USB Continuous Power
Powered directly via a standard USB interface, it is plug-and-play, completely eliminating the need for battery replacements and maintenance costs. The device stays online continuously with stable operation, making it ideal for long-term fixed deployments such as digital signage, information terminals, and retail stores.
Applications
Caractéristiques
| Matériel | Plastique ABS + PC | ||||
| Couleur | Black or customized | ||||
| Taille | 32.8 x16.2 x 8 mm | ||||
| Poids net | 3.5 g | ||||
| Alimentation | 5V USB | ||||
| Application d'affichage des informations | Application compilée FeasyBeacon SDK (par exemple. Application FeasyBeacon) | ||||
| Version Bluetooth | Bluetooth 5.2 Mode double | ||||
| Format publicitaire | ibalise, Eddystone (URL/UID/TLM), Balise Alt | ||||
| Puissance de transmission | Up to +5dBm | ||||
| Intervalle de diffusion | Défaut 100 ms pour ibalise & Eddystone, configurable | ||||
| Distance de diffusion | Jusqu'à 450 m (Aire ouverte) | ||||
| Protection | IP 40 | ||||
| Température de fonctionnement | -10°C ~ 70°C | ||||
| Mise à niveau du micrologiciel | OTA (Mettre à jour le micrologiciel par liaison radio) |
