Farol Bluetooth de longo alcance FSC-BP104DL IP67
The FSC-BP104DL is a professional beacon based on Bluetooth 5.2 Baixa energia (Ble) tecnologia, purpose-built for wide-area asset tracking, real-time positioning, and Industrial IoT (IIoT) aplicações. Featuring an IP67 rating, standard AAA battery power (delivering nearly 3 years of battery life), and an exceptional transmission range of up to 1000 metros, it operates reliably in harsh outdoor and industrial environments. Supporting multiple flexible installation methods, the device can be rapidly deployed across large, expansive settings such as large-scale logistics warehouses, smart pastures, and smart campuses, empowering enterprises to achieve comprehensive asset visibility and highly efficient operations in complex environments.
- Bluetooth® 5.2 Baixa energia
- Flexible Installation
- IP67 à prova d'água & dustproof
- iBeacon/Eddystone Support
- Up to 400m broadcast distance
- Até 10 slots de quadros de publicidade
- Replaceable Battery Design
- Multi-scenario deployable
Ultra-Long Range Transmission
Extended Battery Life
Até 1000 meters of Bluetooth broadcasting range for wide-area coverage, combined with up to 2 years and 11 months of battery life to minimize maintenance and support long-term deployments.
IP67 à prova d'água
FSC-BP104DL features a fully sealed ABS enclosure that effectively protects against dust, moisture, and temporary water immersion, ensuring stable and reliable performance in outdoor, industrial, and humid environments.

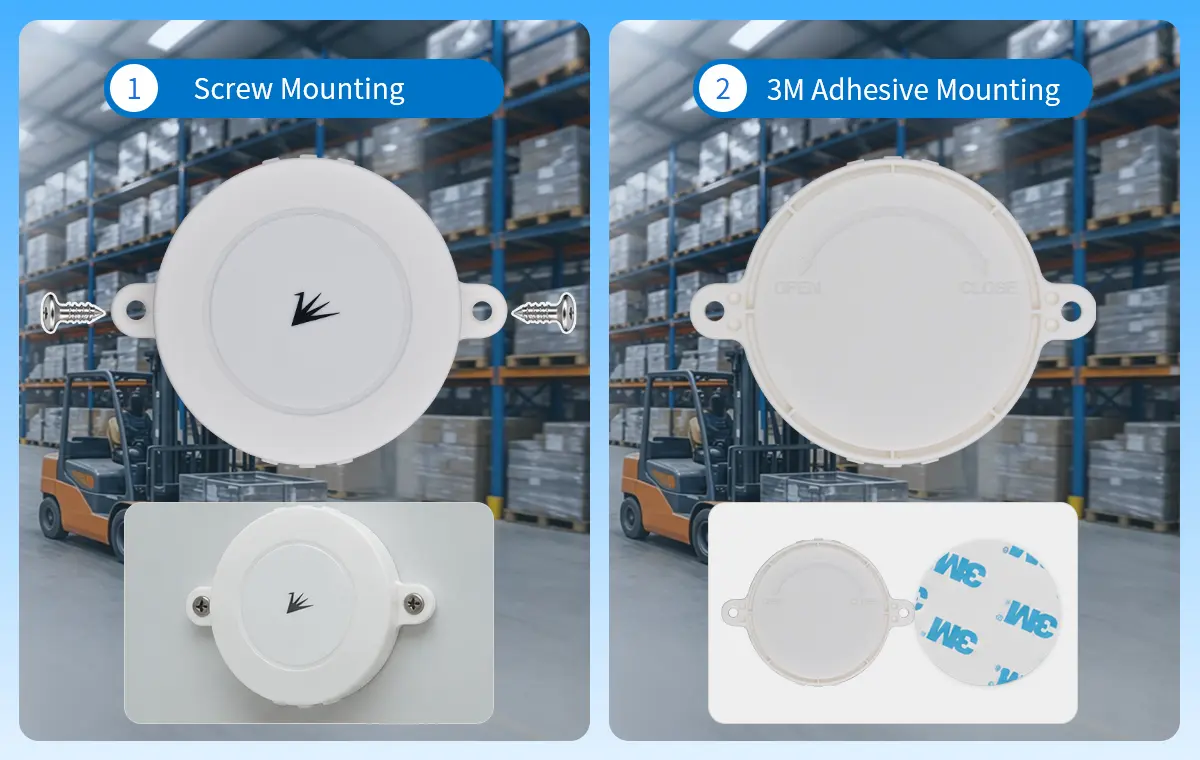

Flexible Installation
Supports both screw mounting and 3M adhesive installation methods, allowing flexible deployment across various equipment, assets, and industrial application scenarios to meet installation requirements in different environments.
Aplicações
Especificações
| Material | ABS plastic | ||||
| Cor | Branco, ou personalizado | ||||
| Tamanho | 86 x 65.7 x 17.2 mm | ||||
| Net Weight | 27.9 g | ||||
| Fonte de energia | 2 × AAA (replaceable) | ||||
| Protection Rating | IP67 | ||||
| Duração da bateria | Até 2 Anos 11 meses | ||||
| Information View App | FeasyBeacon | ||||
| Versão Bluetooth | Ble 5.2 | ||||
| Formato de publicidade | iBeacon, Eddystone (URL/UID/TLM), AltBeacon | ||||
| Transmitir energia | Up to 20dBm | ||||
| Intervalo de transmissão | 100ms～10000ms, Padrão: 1300EM, configurable | ||||
| Broadcast Distance | Até 1000m (Open Area) | ||||
| Temperatura operacional | -20°C ~ 54°C | ||||
| Atualização de firmware | OTA (Over-The-Air) |
Posicionamento & Tracking Services
FSC-BP104DL IP67 Ultra-Long-Range Bluetooth Beacon supports Bluetooth AoA/AoD positioning services for sub‑meter personnel positioning and tracking.
Os clientes podem implantá-lo de forma independente, ou acelere o tempo de obtenção de valor com a plataforma FeasyCloud da Feasycom.
