AOA K3 डेमो किट
Feasycom ब्लूटूथ AOA किट K3 एक उच्च सटीकता RTLS मूल्यांकन किट है जो ब्लूटूथ AOA प्रौद्योगिकी पर आधारित है.
इसमें है 1 एओए गेटवे और 6 टैग. गेटवे POE/DC बिजली की आपूर्ति का समर्थन करता है और तैनात और परीक्षण करना आसान है.
The purpose of K3 is to help customers quickly complete prototype verification and accelerate project implementation progress.
How it works
- Positioning beacons broadcast AoA signals.
- After receiving the AoA signal, the positioning AoA gateway reports the position information to the positioning engine through the network cable.
- The positioning engine reports the positioning result to the positioning service platform.
- The positioning service platform can be displayed to the end users according to the positioning results.
उच्च सटीकता
0.2~0.8m accuracy for all BLE devices
उच्च क्षमता
High tag density for large projects
लंबी बैटरी जीवन
BLE tag Battery life up to 10 साल
Real-time Transmission
Ultra-low latency ensuring minimal delays in data transmission
प्रभावी लागत
Cost-effective thanks to Bluetooth ecosystem
Small Size
Minimum tag size is as small as a coin

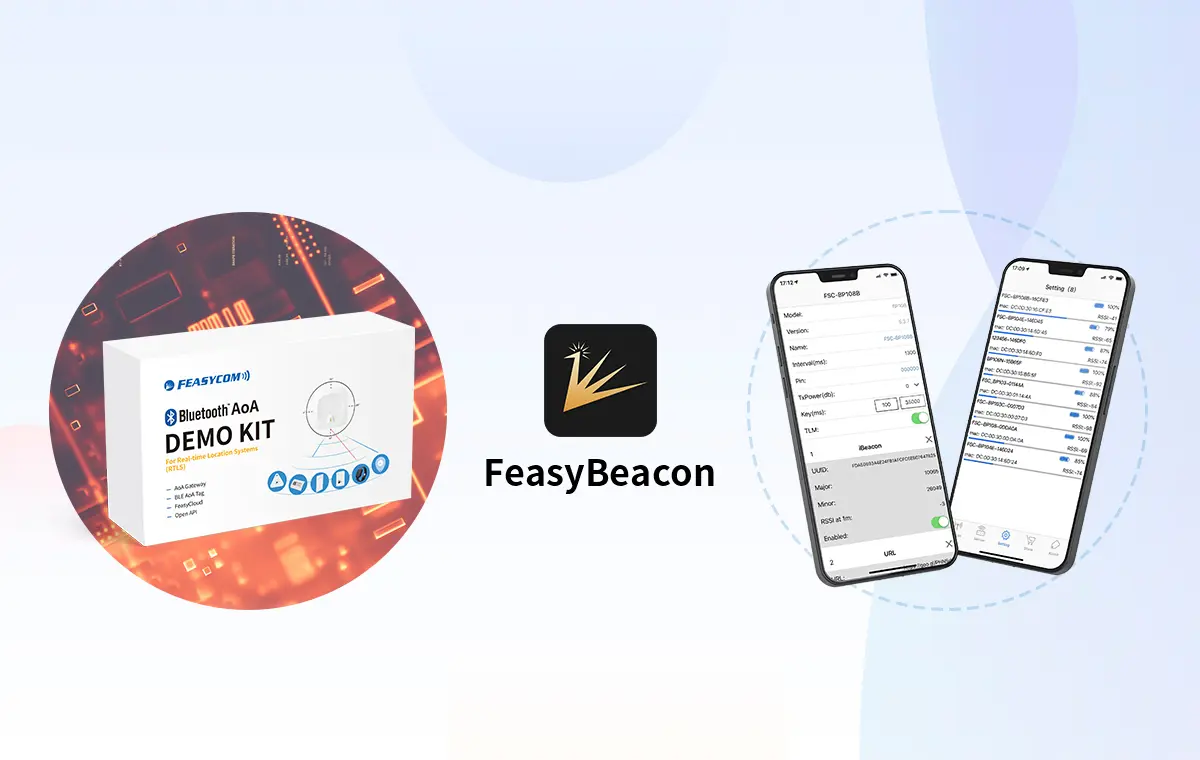

Open SDK & अनुप्रयोग
Open mobile access for function and parameter configuration, enabling secondary development with the FeasyBeacon SDK. The dedicated APP delivers visual parameter editing, real-time status tracking and remote device management.

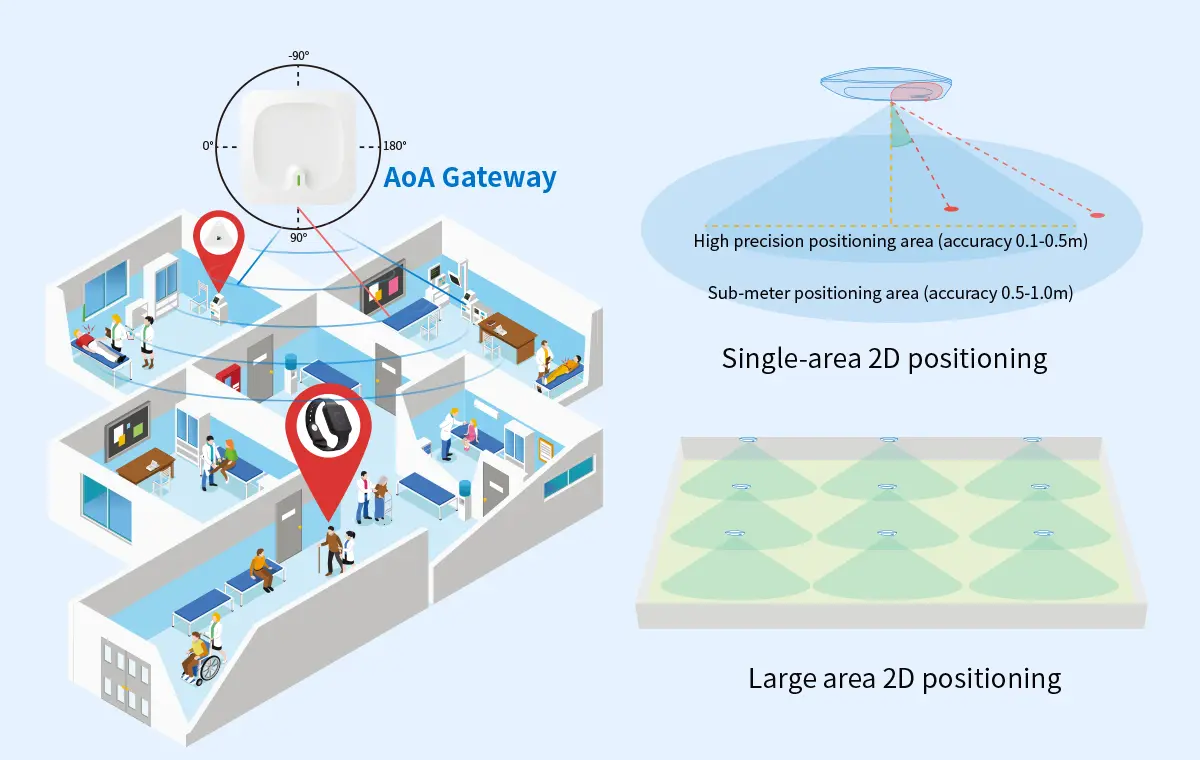

AoA Indoor Positioning System
एओए (Angle of Arrival) positioning technology utilizes multiple antennas to measure the angle at which a wireless signal arrives at the receiver, enabling high-accuracy source location determination.
अनुप्रयोग
विशेष विवरण
| एओए गेटवे | ||||||
| ब्लूटूथ संस्करण | धमाकेदार 5.4 | |||||
| Installation Method | Ceiling/Side hanging | |||||
| बिजली की आपूर्ति | पीओ/डीसी | |||||
| Maximum Installation Height | 10 एम | |||||
| कवरेज | The coverage radius is 2 times of the installation height. | |||||
| शुद्धता | 0.2~0.8 m | |||||
| एओए टैग | ||||||
| ब्लूटूथ संस्करण | धमाकेदार 5.1 | |||||
| चाबी | एसओएस हो सकता है | |||||
| Gravity Sensor | YES | |||||
| नेतृत्व में प्रकाश | YES | |||||
| अनुकूलन | YES | |||||
| विन्यास | Feasybeacon sdk संकलित ऐप (उदाहरण के लिए:. Feasybeacon app) | |||||
| फर्मवेयर अपग्रेडिंग | ओटीए (Update firmware over the air) | |||||
